Thomson® SSU10OPNWW
Thomson®

Thomson® SSU10OPNWW

loading
Thomson®
Email Print

SSU10OPNWW

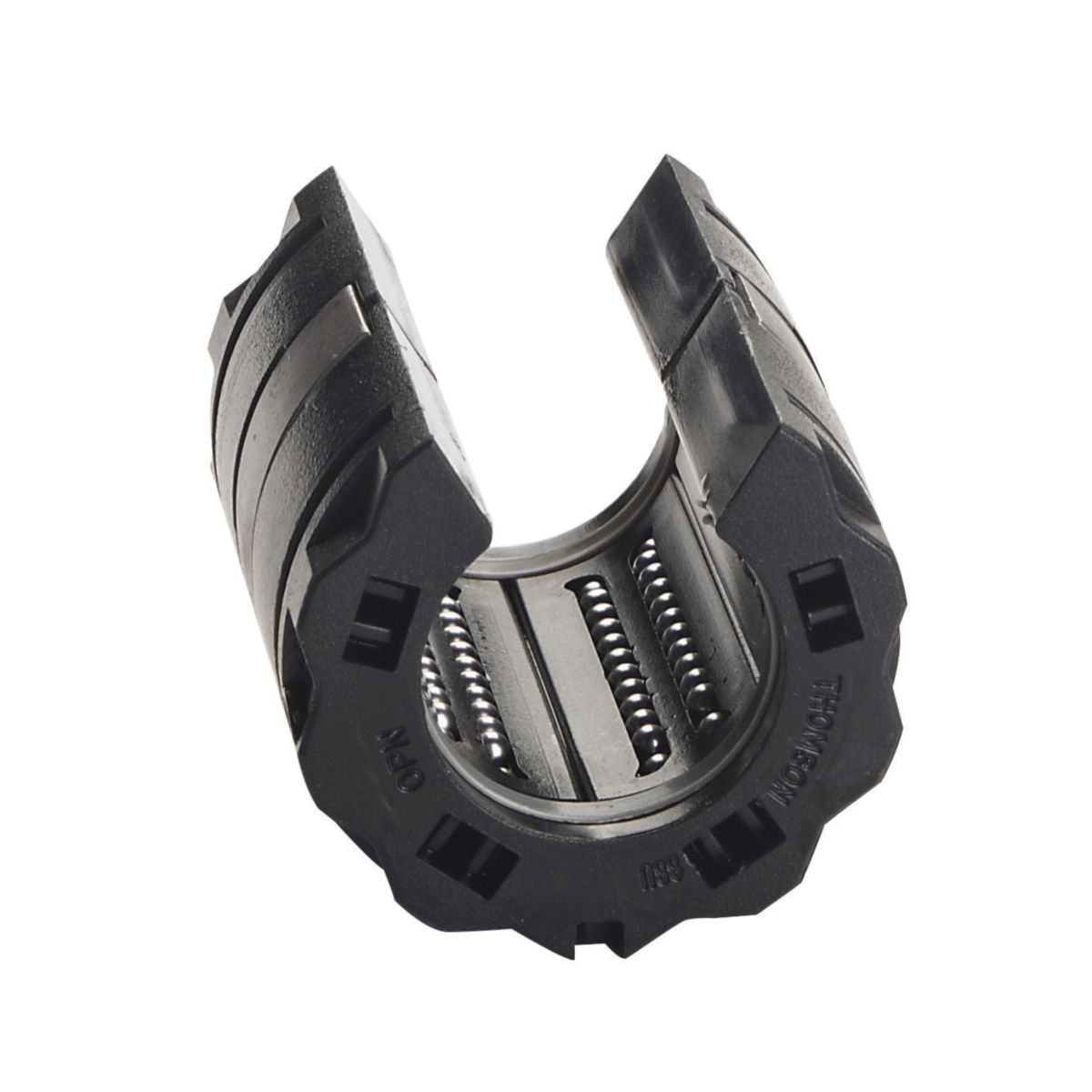

Thomson® Super Smart Ball Bushing® SSU10OPNWW Adjustable Open Linear Bearing, 5/8 in Dia Shaft, 1-1/8 in OD, 1-1/2 in L

  • Item#: SSU10OPNWW
  • Mfr#: SSU10OPNWW
  • UPC: 662486276692
    • A precision, super finished, dual track bearing plate for optimum system smoothness and performance
    • Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
    • RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
    • A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
    • Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
    • Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
    • The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
    • The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
    • The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
    • The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
    • The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
    • Its unique design with the steel band enables the bearing to preserve it's ID fit-up and self-aligning capability over extended use
    • A universal self-alignment feature optimizes load distribution between ball tracks and assures uniform ball loading over the entire length of the bearing plate
    • This patented product provides smooth, quiet, low drag linear movement at 6x the load capacity or 216 x the L10 travel life of a conventional steel linear ball bushing bearing
    • These universally self-aligning bearings offer twice the load capacity or eight times the travel life of our Super Ball Bushing® bearing
    • For class L, continuously supported shafting
    • Self-aligning
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.

Thomson® Super Smart Ball Bushing® Linear Bearing, Adjustable Open, 5/8 in Shaft Dia, 1-1/8 in Outside Dia, 1-1/2 in Length, 620 lb Dynamic, Steel Bearing, 185 deg F

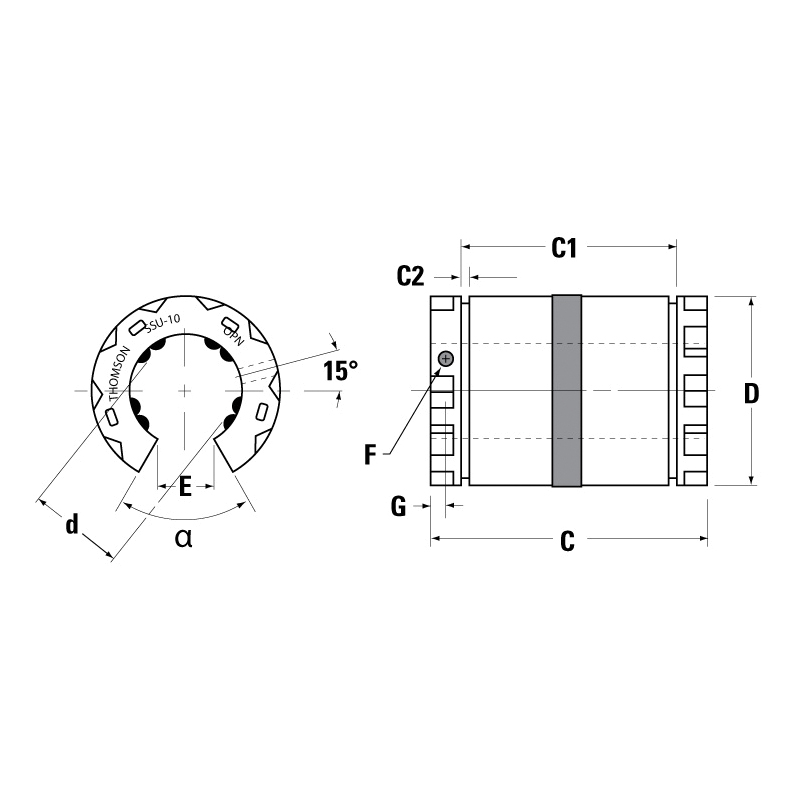

SPECIFICATIONS

Bearing Material      :      Steel
Load Capacity      :      620 lb Dynamic
Temperature Rating      :      185 deg F
Type      :      Adjustable Open
Shaft Diameter      :      5/8 in
Outside Diameter      :      1-1/8 in
Length      :      1-1/2 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_FNYBU06_Catalog.pdf
