Thomson® SSETWNM30DD
Thomson®

Thomson® SSETWNM30DD

loading
Thomson® SSETWNM30DD
Thomson®
Email Print

SSETWNM30DD

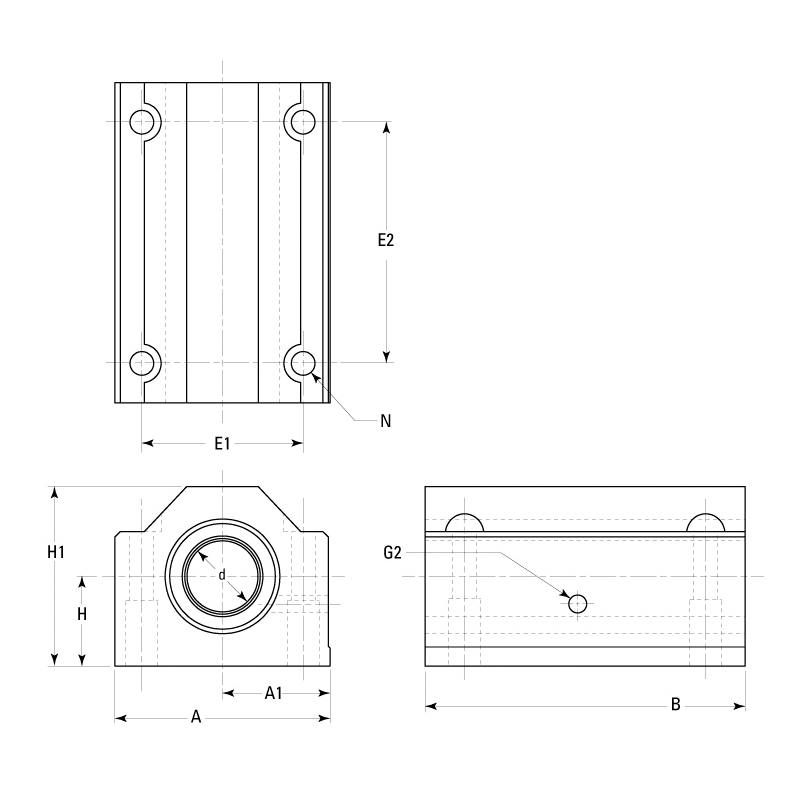

Thomson® Super Smart Ball Bushing® SSETWNM30DD Adjustable Closed Twin Linear Bearing Pillow Block, 30 mm Dia Shaft, 35 mm Center Line to Base, 87 mm L x 152 mm W x 71 mm H

  • Item#: SSETWNM30DD
  • Mfr#: SSETWNM30DD
  • UPC: 662486110644
    • Maintenance free operation
    • Eliminates need for expensive lubrication systems
    • A precision, super finished, dual track bearing plate for optimum system smoothness and performance
    • Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
    • RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
    • A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
    • Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
    • Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
    • Universal self-alignment
    • The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
    • The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
    • The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
    • The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
    • The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
    • Closed pillow blocks are for end supported shafting
    • For metric class shafting
    • Self-aligning
    • Integral seals both ends
    • Seals standard with SSE
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.

Thomson® Super Smart Ball Bushing® Linear Bearing Pillow Block, Adjustable Closed Twin, Series: SSETWN, 30 mm Shaft Dia, 35 mm Center Line to Base, 71 mm Height, 87 mm Length, 152 mm Width, 16600 N Dynamic/18200 N Static, Steel Bearing, 185 deg F, Black Anodized

SPECIFICATIONS

Bearing Material      :      Steel
Finish      :      Black Anodized
Load Capacity      :      16600 N Dynamic/18200 N Static
Series      :      SSETWN
Temperature Rating      :      185 deg F
Type      :      Adjustable Closed Twin
Shaft Diameter      :      30 mm
Center Line to Base      :      35 mm
Length      :      87 mm
Width      :      152 mm
Height      :      71 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/440/Thomson_FNYBU06_Catalog.pdf
