SB10

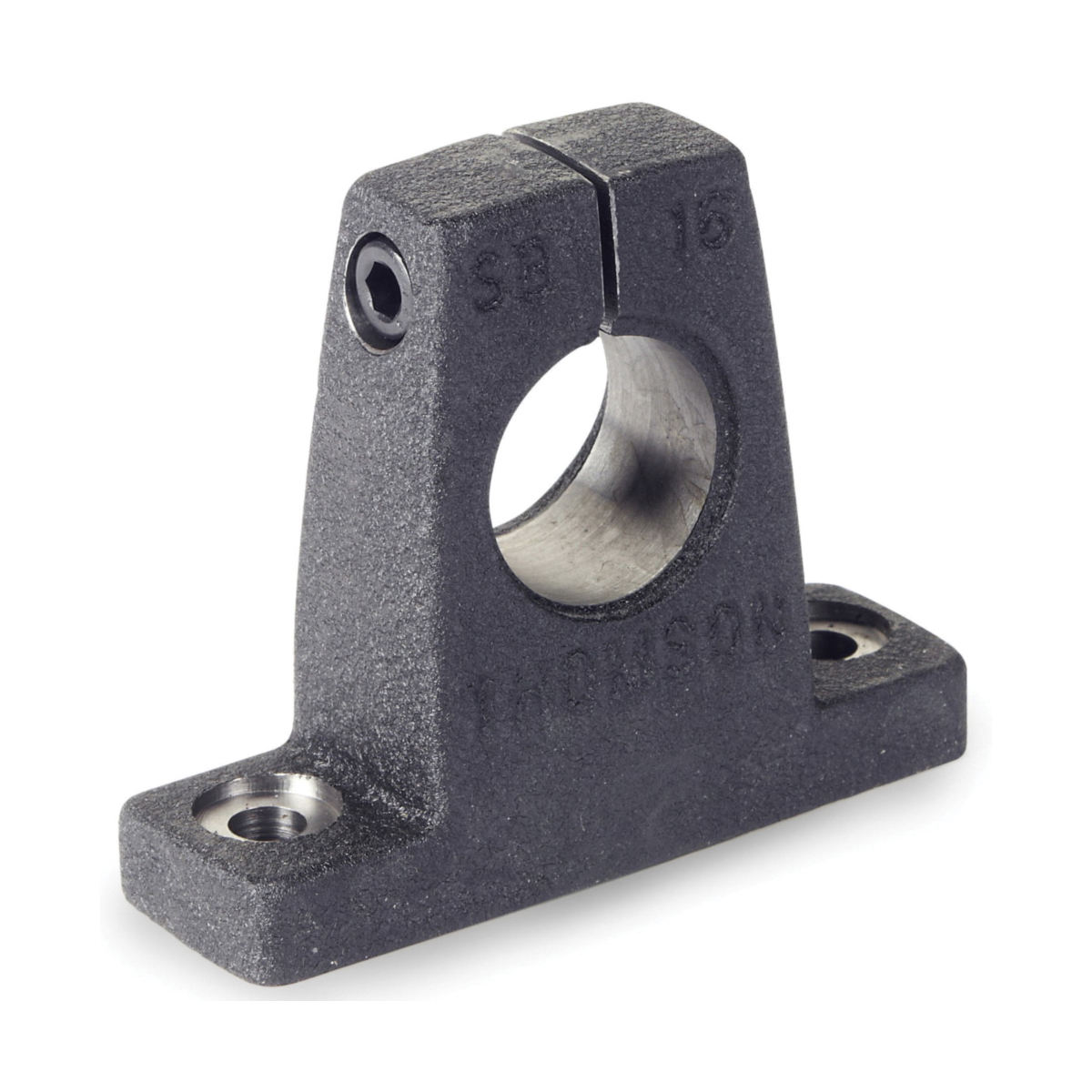

Thomson® 60 Case® LinearRace® SB10 Standard Type SB Shaft Support Block, 5/8 in Dia Shaft, 2-1/2 in L x 0.69 in W x 1-3/4 in H
- CP#:
- Item#: SB10
- Mfr#: SB10
- UPC: 662486101635
- Easily secured with two mounting bolts
- Protected by corrosion resistant coating
- Lightweight, high-strength aluminum alloy construction
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type SB shaft support blocks enable clamping of shafts and eliminate the need for bolts, to maintain shaft position. Shimming is suggested for high-precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.
Thomson® 60 Case® LinearRace® Shaft Support Block, Standard Type SB, 5/8 in Shaft Diameter, 0.69 in Width, 1-3/4 in Height, 2-1/2 in Length, For Use With: RoundRail™ 1BA/1NA End-Supported Linear Guide, Malleable Iron, Painted

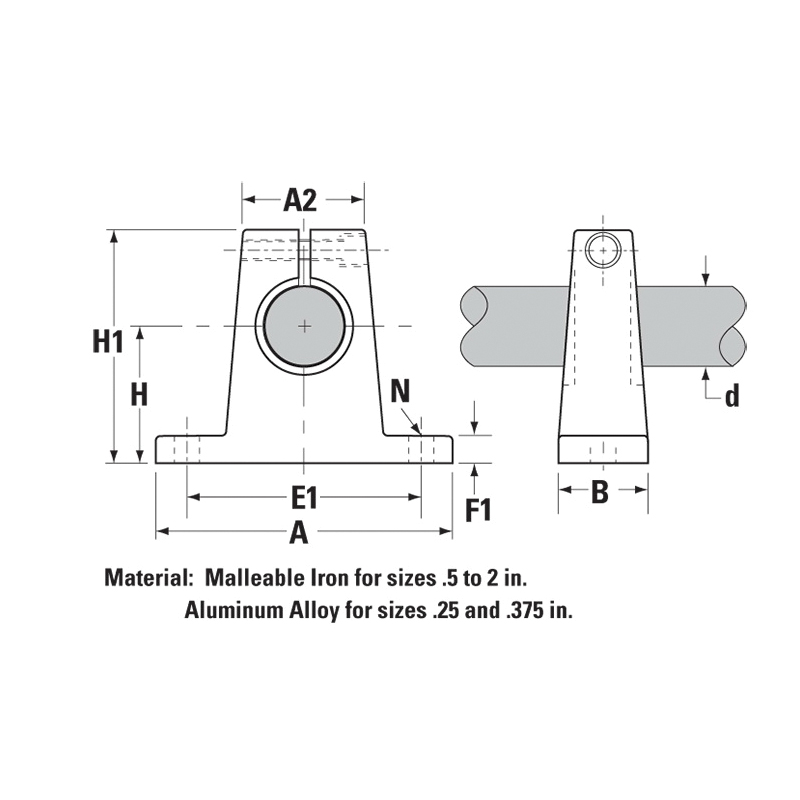

SPECIFICATIONS
| Finish | : | Painted |
| Material | : | Malleable Iron |
| Suitable For Use With | : | RoundRail™ 1BA/1NA End-Supported Linear Guide |
| Type | : | Standard Type SB |
| Shaft Diameter | : | 5/8 in |
| Length | : | 2-1/2 in |
| Width | : | 0.69 in |
| Height | : | 1-3/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_ADJS1000_Catalog.pdf
