S12-17A8-06

Thomson® Electrak® 1 S12-17A8-06 Linear Actuator With DC Motor, 75 lb Dynamic/300 lb Static Load, 5.8 in Max Stroke, 0.65 in/s Full Load/1 in/s No Load Max, 25 % Duty Cycle, 12 VDC

  • Item#: S12-17A8-06
  • Mfr#: S12-17A8-06
  • Very compact and lightweight
  • Corrosion resistant
  • Auto reset thermal switch motor protection
  • Maintenance free
  • Ideal for replacement of comparable size pneumatic and hydraulic cylinders
  • Aluminum cover tube
  • 2 in L cable
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The Electrak® 1 actuator is completely self-contained and sealed for indoor and outdoor use. Functionally, these models are easily interchanged with comparably sized hydraulic or pneumatic cylinders. Used on intermittent duty applications Electrak 1 actuators provide consistent, repeatable performance in the most rigorous operating conditions including extreme temperatures and humidities.

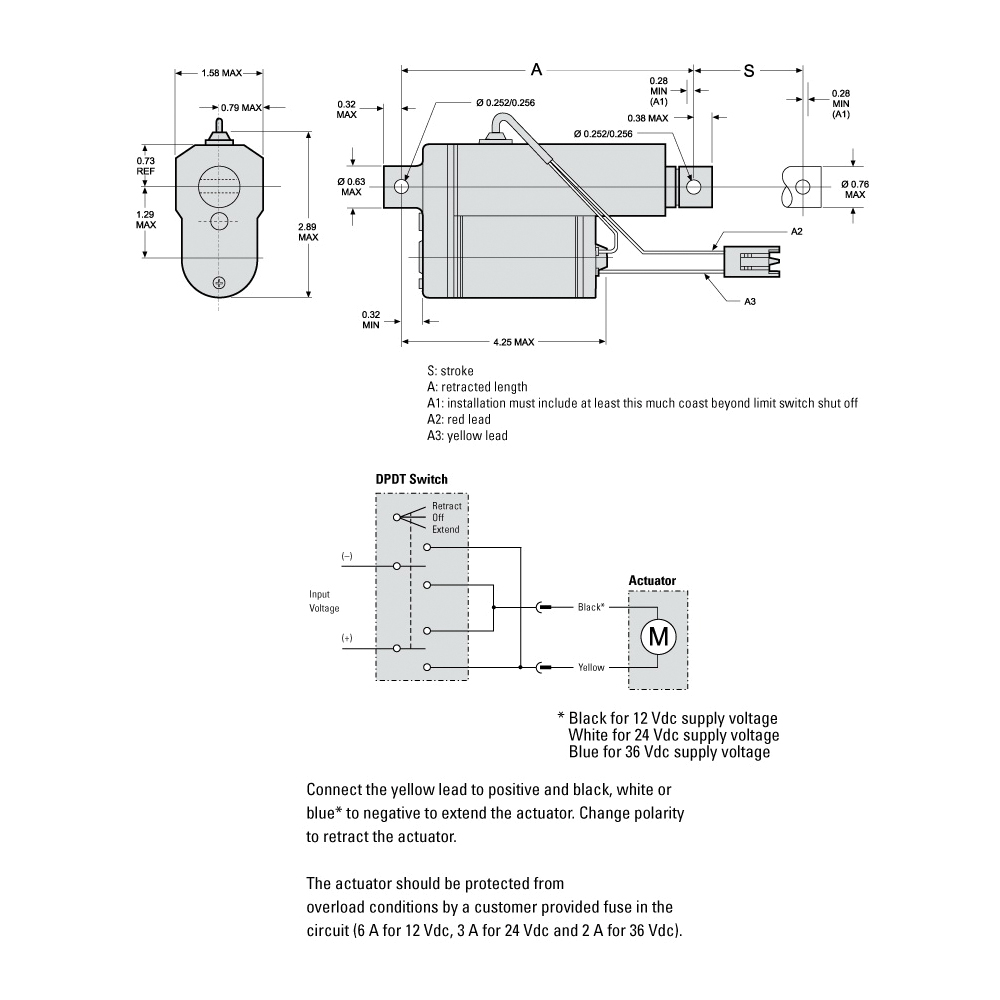

Thomson® Electrak® 1 Linear Actuator, 75 lb Dynamic/300 lb Static Load, 5.8 in Maximum Stroke, 0.65 in/s Full Load/1 in/s No Load Maximum, 25 % Duty Cycle, 12 VDC, 5.6 A, 10.3 in Retracted Length, Zinc, Painted, 1.58 in W x 2.89 in H Dimensions

SPECIFICATIONS

Amperage Rating      :      5.6 A
Dimensions      :      1.58 in W x 2.89 in H
Finish      :      Painted
Material      :      Zinc
Retracted Length      :      10.3 in
Load Capacity      :      75 lb Dynamic/300 lb Static
Maximum Stroke      :      5.8 in
Maximum Speed      :      0.65 in/s Full Load/1 in/s No Load
Duty Cycle      :      25 %
Voltage Rating      :      12 VDC
