Thomson®
PR1500

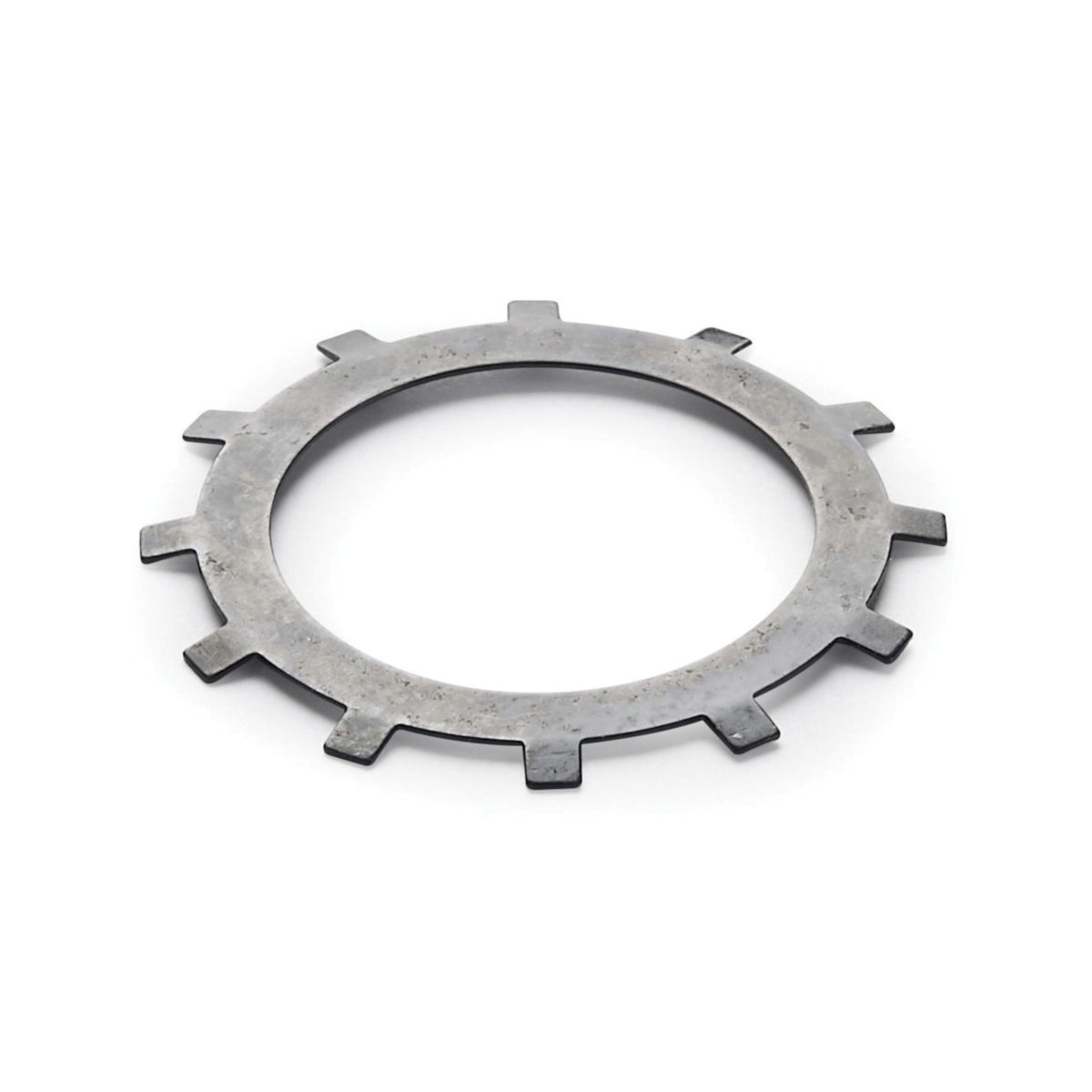

Thomson® PR1500 Internal Type PR Retaining Ring, 1-1/2 in Dia Shaft, 2-3/8 in OD, Steel
- Item#: PR1500
- Mfr#: PR1500
- UPC: 662486820239
- Push-in retaining rings for retention inside housing bores
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Push-in retaining rings are for use with super smart, super and precision steel ball bushing closed type bearings. Each retaining ring is installed inside the housing bore at each end of the Ball Bushing® bearing.
Thomson® Retaining Ring, Internal Type PR, 1-1/2 in Diameter Nominal Shaft, 2-3/8 in OD, 0.1 in Minimum End Space, For Use With: Super Smart Ball Bushing® SSU24, Super Ball Bushing® SUPER24 and Ball Bushing® A243848, XA243848 Precision Steel Linear Bearings, Steel
SPECIFICATIONS

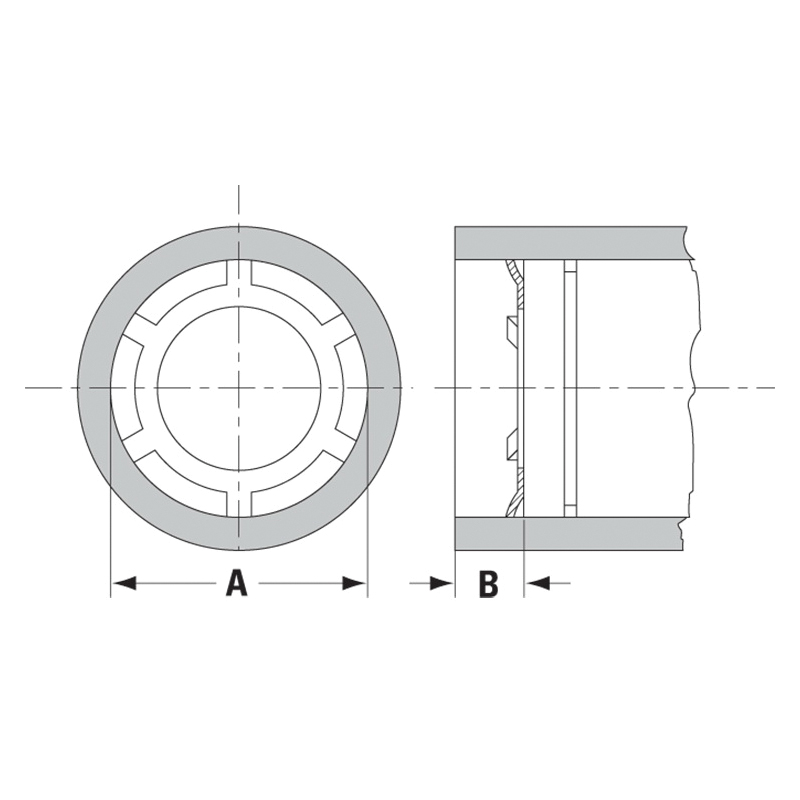

| Minimum End Space | : | 0.1 in |
| Suitable For Use With | : | Super Smart Ball Bushing® SSU24, Super Ball Bushing® SUPER24 and Ball Bushing® A243848, XA243848 Precision Steel Linear Bearings |
| Type | : | Internal Type PR |
| Nominal Shaft Diameter | : | 1-1/2 in |
| Outside Diameter | : | 2-3/8 in |
| Material | : | Steel |
