XCF4-3711

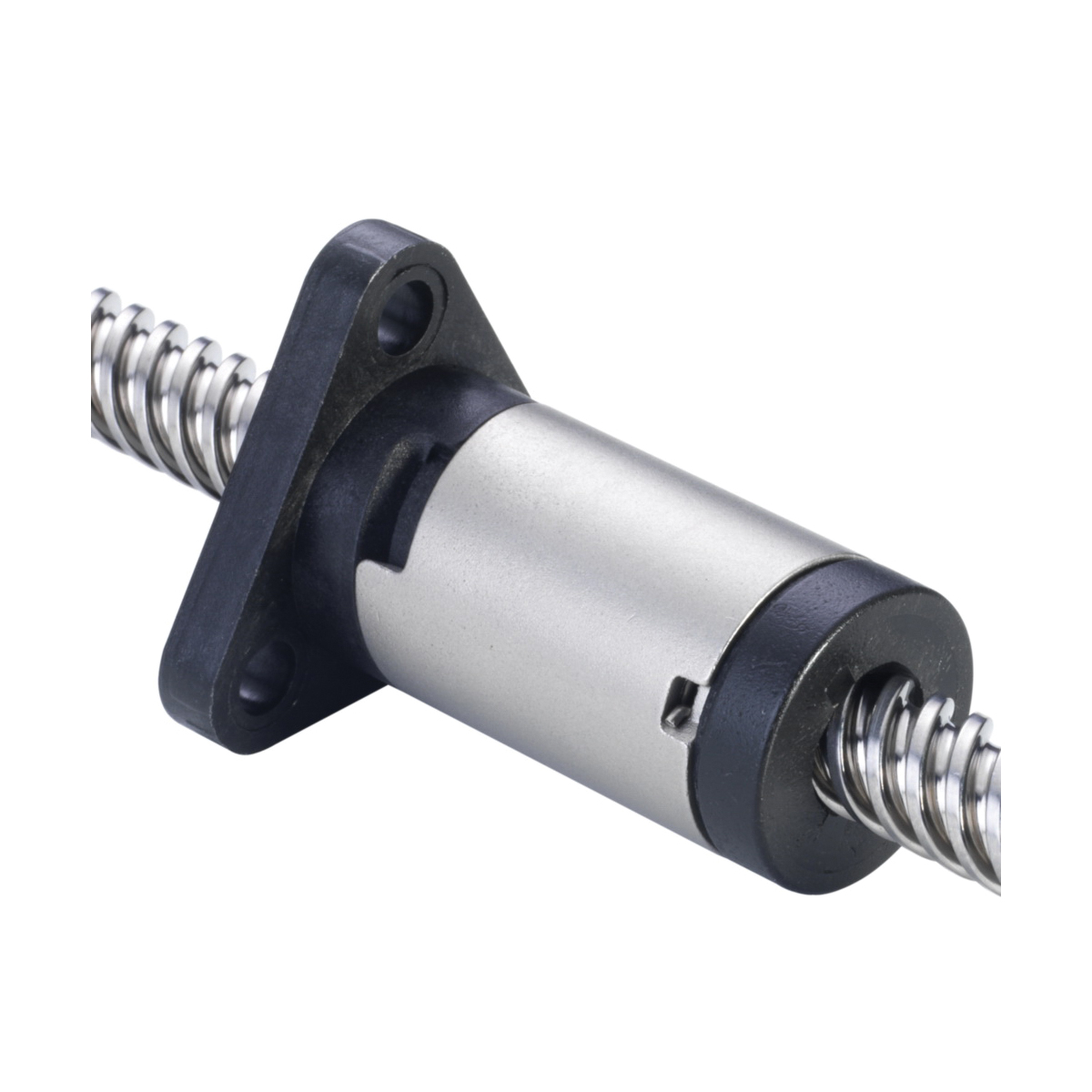

Thomson BSA™ XCF4-3711 XC Supernuts® Advanced Anti-Backlash Flange Mount Lead Nut, 3/8 in, 0.82 in OD, Acetyl
- CP#:
- Item#: XCF4-3711
- Mfr#: XCF4-3711
- 180 deg F operating temperature
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Thomson BSA™ XC series of lead screw nuts has the best anti-backlash technology, using a stainless steel cam (ActiveCAM™) to create a solid bias between the nut halves. A torsional spring maintains the tension between the parts, while still having low torque and drag. The ActiveCAM™ design results in the stiffest assembly possible using polymer lead screw nuts. Every movement with XC series lead screw nuts is exact and repeatable. This provides a light- and medium duty anti-backlash screw that rivals ball screws for precision.

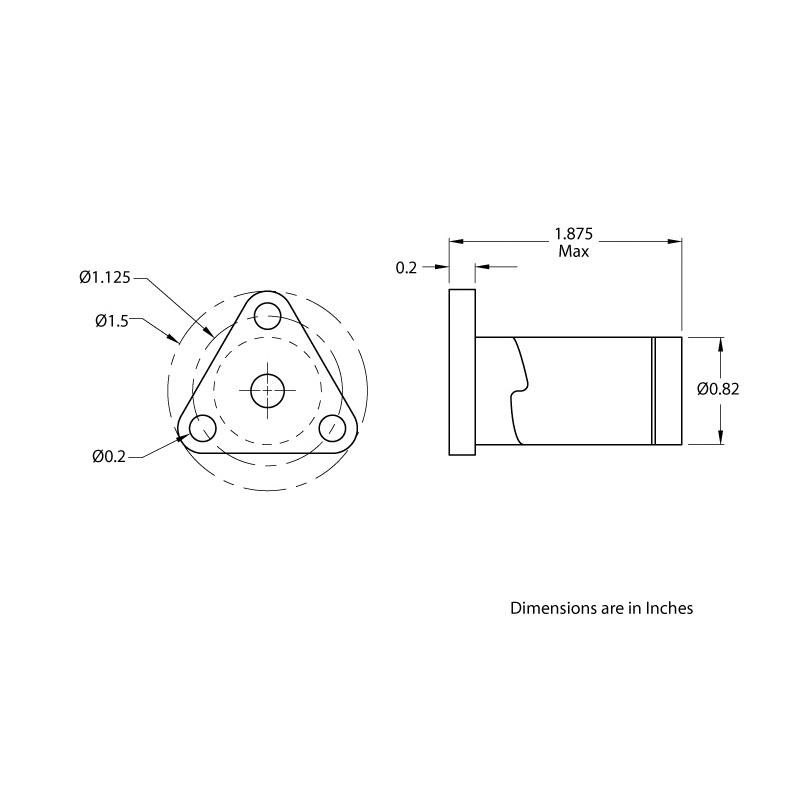

Thomson BSA™ Lead Nut, Advanced Anti-Backlash Flange Mount, Series: XC Supernuts®, 3/8 in Screw Diameter, 0.82 in OD, 1-7/8 in Nut Length, Right Thread, 3/8 in Thread Lead, 1-1/2 in Diameter Flange, 0.2 in Flange Thickness, 25 lb Design Load, For Use With: Precision Lead Screw, Acetyl
SPECIFICATIONS
| Flange Diameter | : | 1-1/2 in |
| Flange Thickness | : | 0.2 in |
| Load Capacity | : | 25 lb Design |
| Nut Length | : | 1-7/8 in |
| Screw Diameter | : | 3/8 in |
| Series | : | XC Supernuts® |
| Suitable For Use With | : | Precision Lead Screw |
| Thread Direction | : | Right |
| Type | : | Advanced Anti-Backlash Flange Mount |
| Thread Lead | : | 3/8 in |
| Outside Diameter | : | 0.82 in |
| Material | : | Acetyl |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5700974_Catalog.pdf
