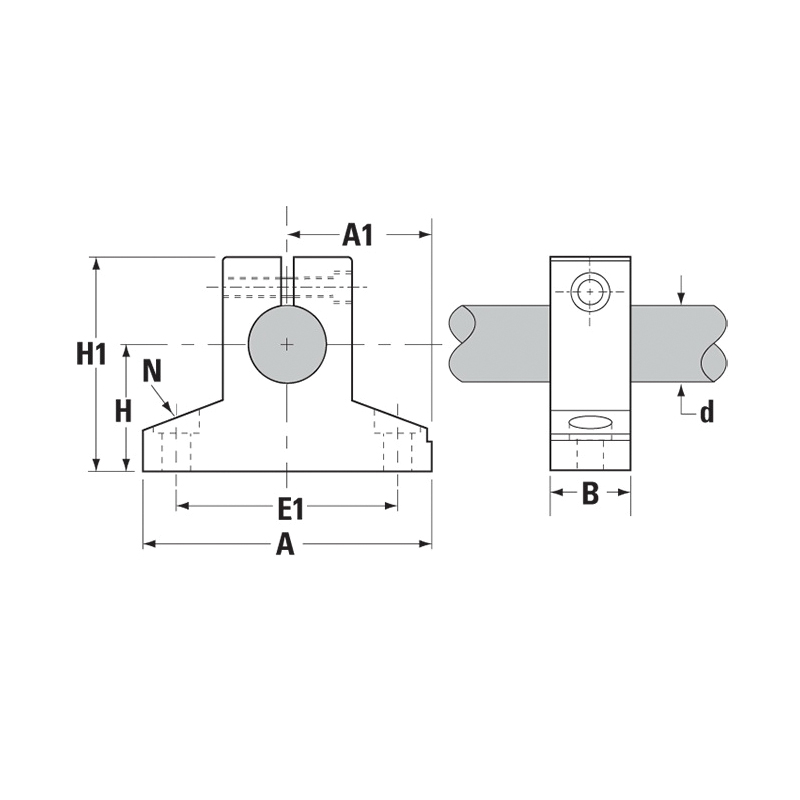

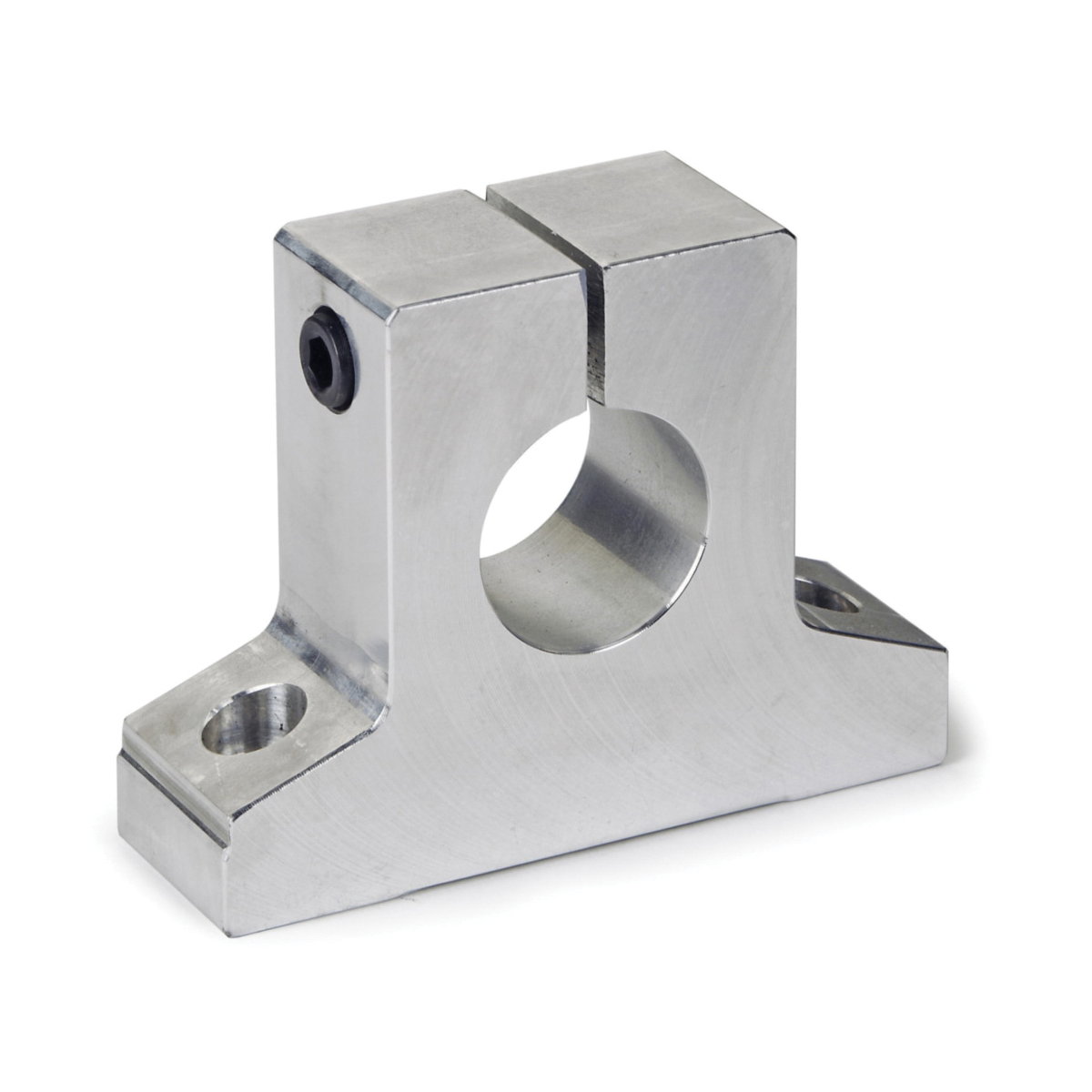

ThomsonĀ® 60 CaseĀ® LinearRaceĀ® ASB24 Low Profile Type ASB Shaft Support Block, 1-1/2 in Dia Shaft, 4-3/4 in L x 1-1/4 in W x 3-1/2 in H

  • Item#: ASB24
  • Mfr#: ASB24
  • UPC: 662486100171
  • Easily secured with two mounting bolts
  • Lightweight, high-strength aluminum alloy construction
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type ASB shaft blocks, manufactured from high-strength, extruded aluminum, provide either end or intermittent support in applications where loads are designed with a reference edge on one side of the base. This provides a surface parallel to the center of the shaft within +/- 0.001 in that can be used to simplify shaft alignment.

Thomson® 60 Case® LinearRace® Shaft Support Block, Low Profile Type ASB, 1-1/2 in Shaft Diameter, 1-1/4 in Width, 3-1/2 in Height, 4-3/4 in Length, For Use With: RoundRail™ 1BA/1NA End-Supported Linear Guide, Aluminum

SPECIFICATIONS

Material      :      Aluminum
Suitable For Use With      :      RoundRail™ 1BA/1NA End-Supported Linear Guide
Type      :      Low Profile Type ASB
Shaft Diameter      :      1-1/2 in
Length      :      4-3/4 in
Width      :      1-1/4 in
Height      :      3-1/2 in
