8120-448-011

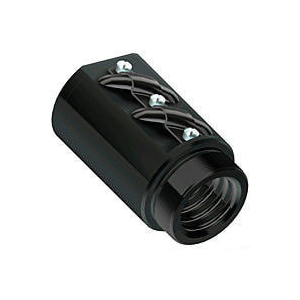

Thomson® 8120-448-011 Type C Non-Preloaded Round Ball Nut, 2 in Dia Screw, 1/2 in, 2 Circuits, 3-1/4 in OD
- CP#:
- Item#: 8120-448-011-P01
- Mfr#: 8120-448-011
- Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Thomson® Ball Nut, Type C Non-Preloaded Round, 2 in Screw Diameter, 3-1/4 in OD, 2 Circuits, 6.38 in Nut Length, 3-12 UN Thread, Right Thread, 1/2 in Thread Lead, 18500 lb Dynamic/154635 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Load Capacity | : | 18500 lb Dynamic/154635 lb Static |
| Material | : | Steel |
| Nut Length | : | 6.38 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right Hand |
| Thread Size | : | 3-12 UN |
| Type | : | Type C Non-Preloaded Round |
| Screw Diameter | : | 2 in |
| Thread Lead | : | 1/2 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 3-1/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703263_Catalog.pdf
