- Thomson® 8115-448-020
8115-448-020

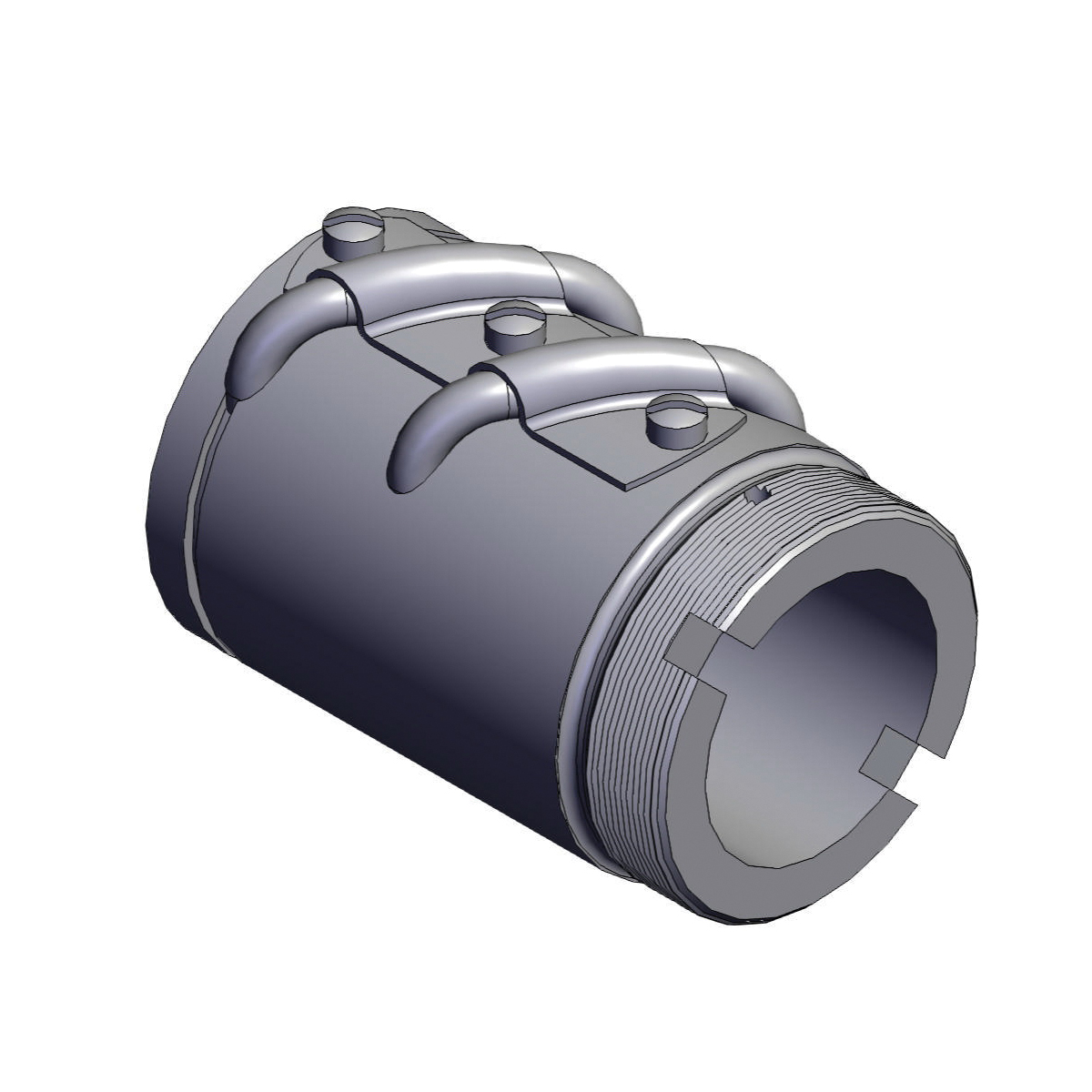

Thomson® 8115-448-020 MAR Legacy Non-Preloaded Round Ball Nut, 1-1/2 in Dia Screw, 1/4 in, 2 Circuits, 2.098 in OD
- CP#:
- Item#: 8115-448-020
- Mfr#: 8115-448-020
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

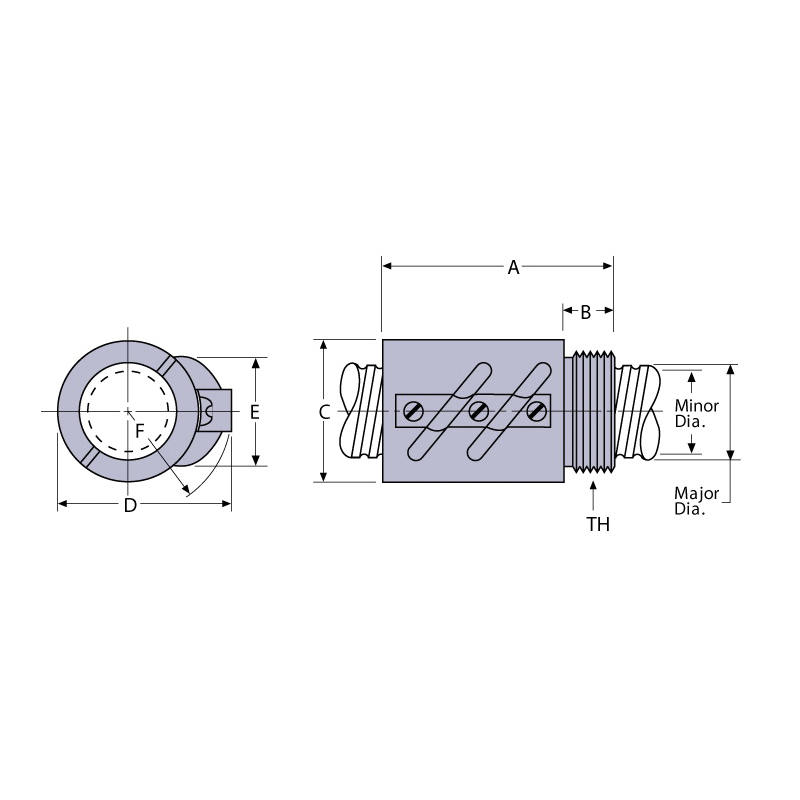

Thomson® Ball Nut, Non-Preloaded Round, Series: MAR Legacy, 1-1/2 in Screw Diameter, 2.098 in OD, 2 Circuits, 3.26 in Nut Length, 1.967-18 UNS-2A Thread, Right Thread, 1/4 in Thread Lead, 4050 lb Dynamic/47450 lb Static Load, For Use With: MAR Legacy Screw, Steel, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Load Capacity | : | 4050 lb Dynamic/47450 lb Static |
| Material | : | Steel |
| Nut Length | : | 3.26 in |
| Series | : | MAR Legacy |
| Suitable For Use With | : | MAR Legacy Screw |
| Thread Direction | : | Right |
| Thread Size | : | 1.967-18 UNS-2A |
| Type | : | Non-Preloaded Round |
| Screw Diameter | : | 1-1/2 in |
| Thread Lead | : | 1/4 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 2.098 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703263_Catalog.pdf
