- Thomson® 8115-448-016
8115-448-016

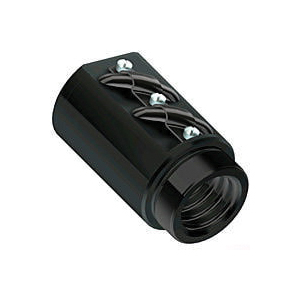

Thomson® 8115-448-016 Type C Non-Preloaded Round Ball Nut, 1-1/2 in Dia Screw, 1/2 in, 2 Circuits, 2.62 in OD
- CP#:
- Item#: 8115-448-016
- Mfr#: 8115-448-016
- Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

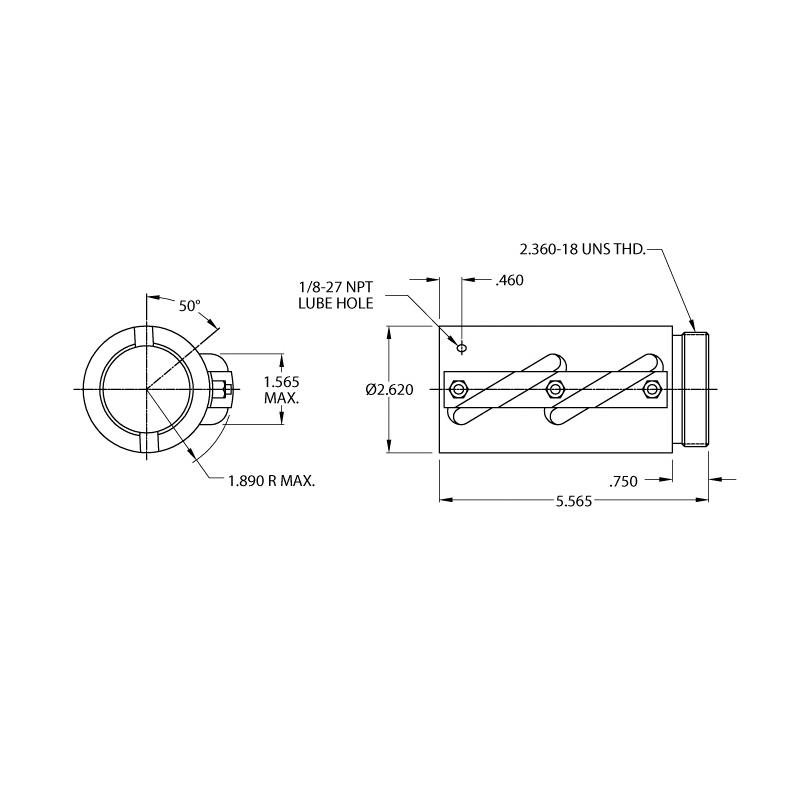

Thomson® Ball Nut, Type C Non-Preloaded Round, 1-1/2 in Screw Diameter, 2.62 in OD, 2 Circuits, 5.565 in Nut Length, 2.36-18 UNS Thread, Right Thread, 1/2 in Thread Lead, 14513 lb Dynamic/102300 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Load Capacity | : | 14513 lb Dynamic/102300 lb Static |
| Material | : | Steel |
| Nut Length | : | 5.565 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right |
| Thread Size | : | 2.36-18 UNS |
| Type | : | Type C Non-Preloaded Round |
| Screw Diameter | : | 1-1/2 in |
| Thread Lead | : | 1/2 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 2.62 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703263_Catalog.pdf
