Thomson®
8110-448-026

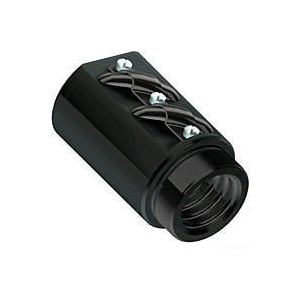

Thomson® 8110-448-026 Type C Non-Preloaded Round Ball Nut, 1 in Dia Screw, 1/4 in, 2 Circuits, 1.687 in OD
- Item#: 8110-448-026
- Mfr#: 8110-448-026
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

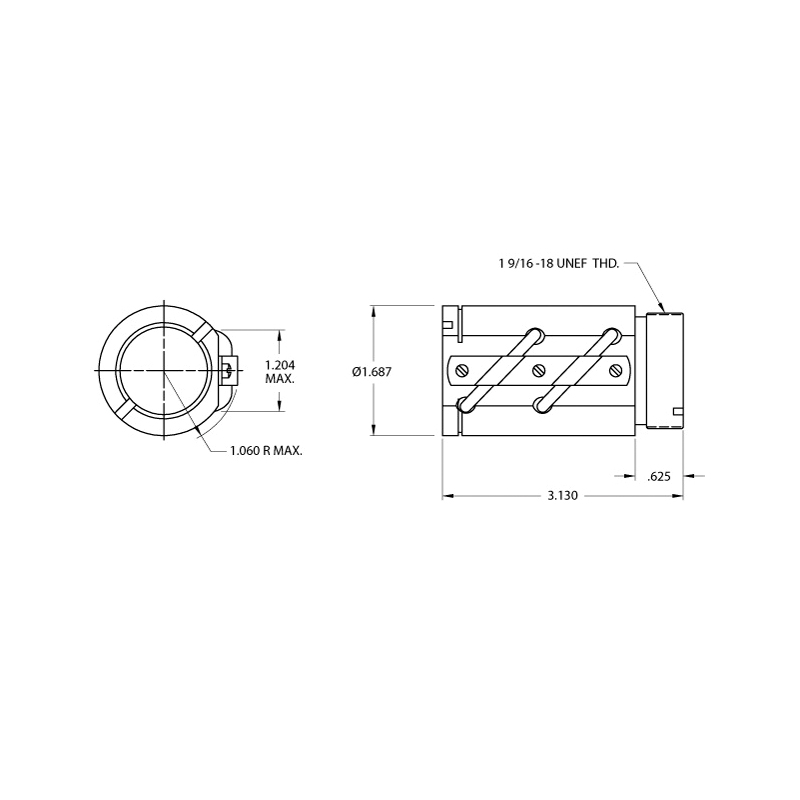

Thomson® Ball Nut, Type C Non-Preloaded Round, 1 in Screw Diameter, 1.687 in OD, 2 Circuits, 3.13 in Nut Length, 1.563-18 UNEF Thread, Right Hand Thread, 1/4 in Thread Lead, 3350 lb Dynamic/30750 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Load Capacity | : | 3350 lb Dynamic/30750 lb Static |
| Material | : | Steel |
| Nut Length | : | 3.13 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right Hand |
| Thread Size | : | 1.563-18 UNEF |
| Type | : | Type C Non-Preloaded Round |
| Screw Diameter | : | 1 in |
| Thread Lead | : | 1/4 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 1.687 in |
