- Thomson® 8110-448-002
8110-448-002

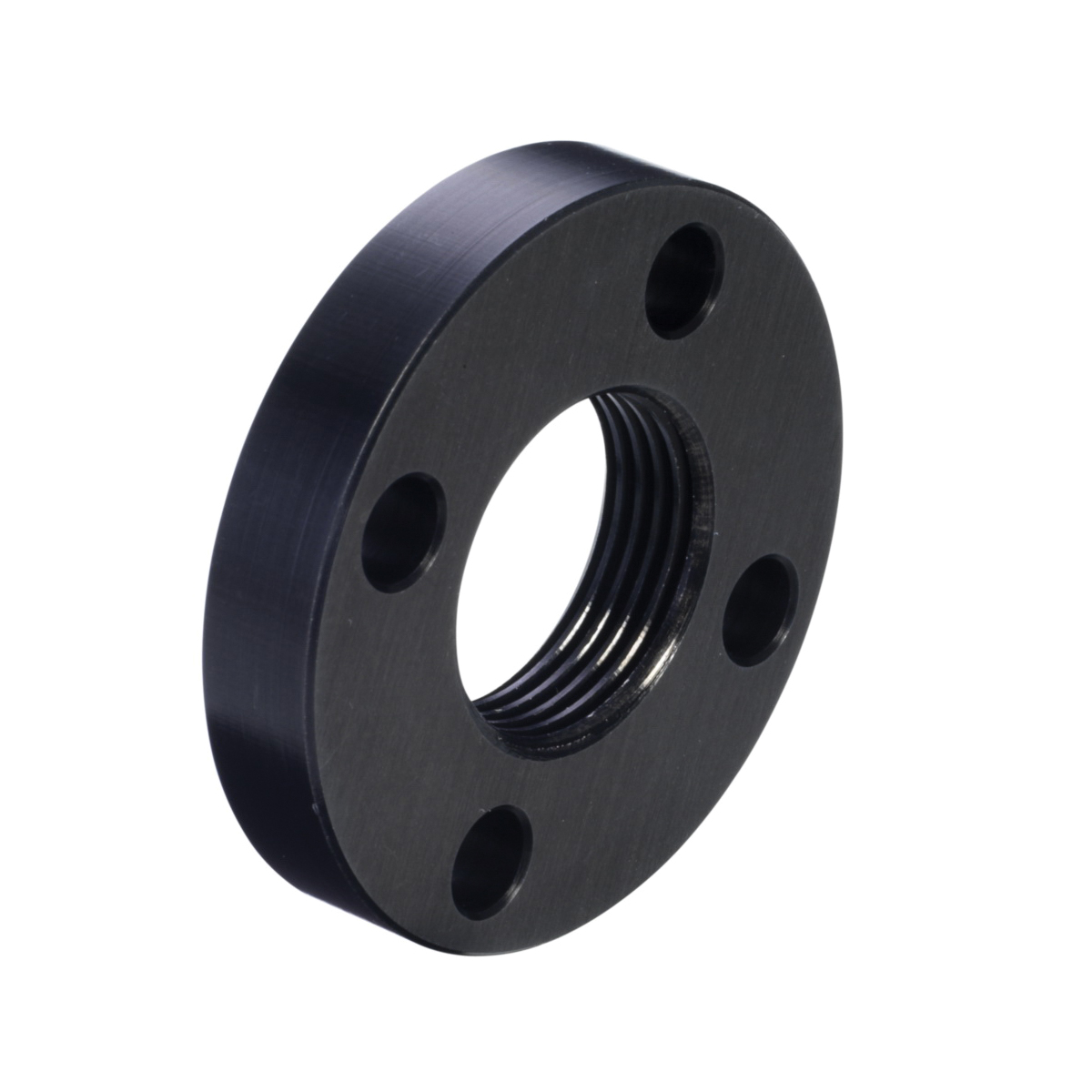

Thomson® 8110-448-002 Ball Nut Flange, 1 9/16-18 Thread, 3-1/4 in OD, 0.63 in THK, Steel
- CP#:
- Item#: 8110-448-002
- Mfr#: 8110-448-002
- Flanges provide an easy, low cost method to mount the load square and concentric to the ball screw
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

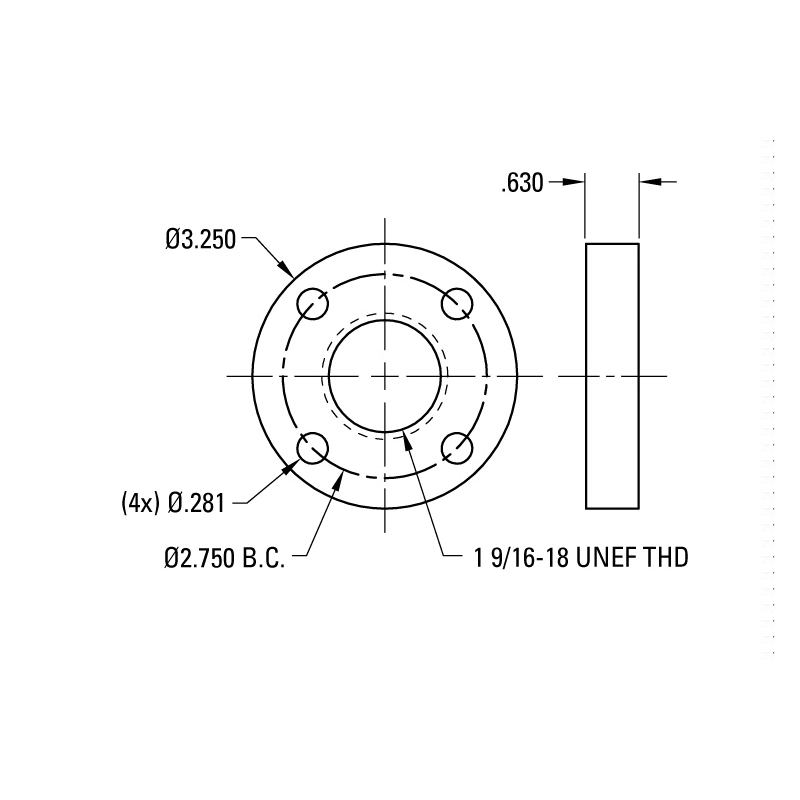

Thomson® Ball Nut Flange, 1 9/16-18, 3-1/4 in Outside Dia, 0.63 in Thickness, 0.281 in Dia Bolt, 0.281 in Dia Mounting Hole, For Use With: Type A Precision Rolled Ball Screw, Steel
SPECIFICATIONS
| Bolt Size | : | 0.281 in Dia |
| Mounting Hole Size | : | 0.281 in Dia |
| Suitable For Use With | : | Type A Precision Rolled Ball Screw |
| Thread Size | : | 1 9/16-18 |
| Outside Diameter | : | 3-1/4 in |
| Thickness | : | 0.63 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703263_Catalog.pdf
