Thomson®
8105-448-013

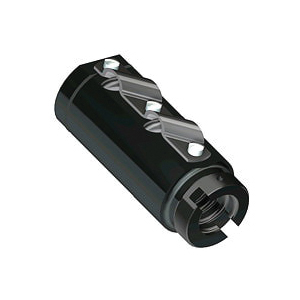

Thomson® 8105-448-013 Type C Non-Preloaded Round Ball Nut With Load Lock, 1/2 in Dia Screw, 0.2 in, 2 Circuits, 1.062 in OD
- Item#: 8105-448-013
- Mfr#: 8105-448-013
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

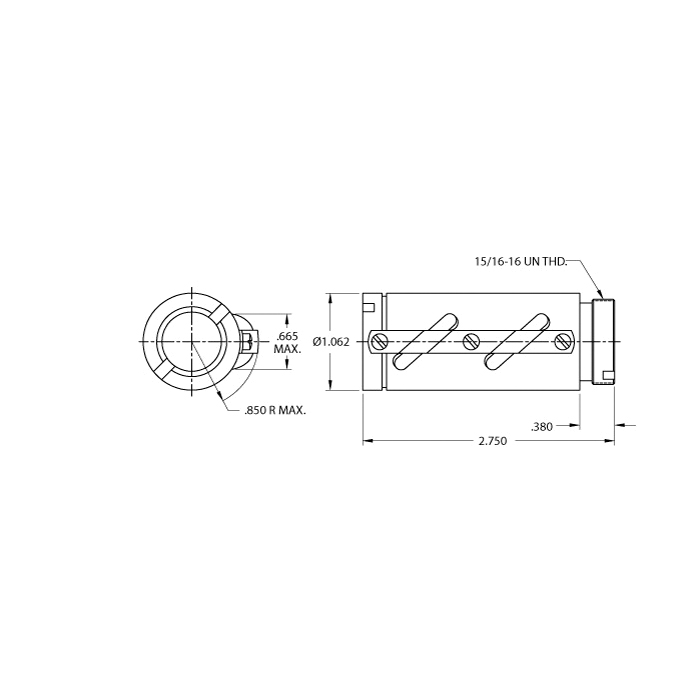

Thomson® Ball Nut, Type C Non-Preloaded Round, 1/2 in Screw Diameter, 1.062 in OD, 2 Circuits, 2-3/4 in Nut Length, 15/16-16 UN Thread, Right Hand Thread, 0.2 in Thread Lead, 1200 lb Dynamic/9430 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Load Capacity | : | 1200 lb Dynamic/9430 lb Static |
| Material | : | Steel |
| Nut Length | : | 2-3/4 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right Hand |
| Thread Size | : | 15/16-16 UN |
| Type | : | Type C Non-Preloaded Round |
| Screw Diameter | : | 1/2 in |
| Thread Lead | : | 0.2 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 1.062 in |
