Thomson®
8105-448-008

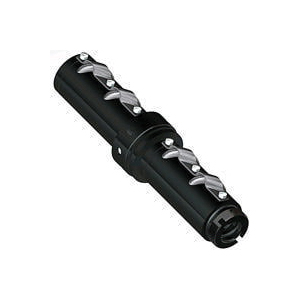

Thomson® 8105-448-008 Type G Double Preloaded Round Ball Nut With Load Lock, 1/2 in Dia Screw, 0.2 in, 2 Circuits, 1.062 in OD
- Item#: 8105-448-008
- Mfr#: 8105-448-008
- 300 deg F operating temperature
- Nut only, screw sold separately
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Preloaded ball nuts should be considered to eliminate backlash and increase system stiffness in applications where multi-directional positional accuracy and repeatability are required. Preloaded ball nuts consist of two non-preloaded ball nuts (round or square) joined by an adjustable preload package with springs. This design allows ease of setup and adjust of preload based on application requirements.

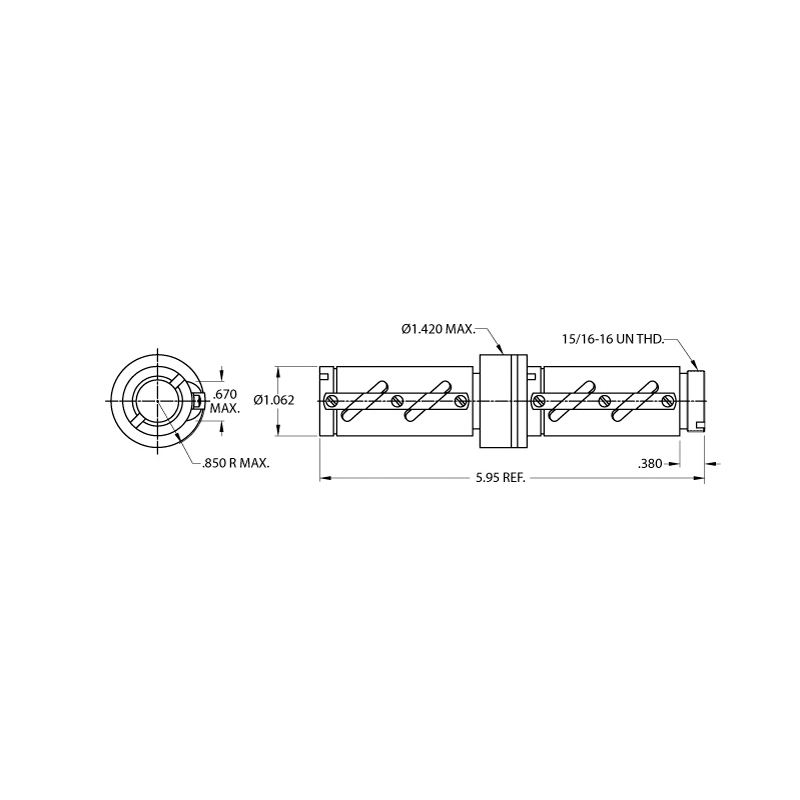

Thomson® Ball Nut, Type G Double Preloaded Round, 1/2 in Screw Diameter, 1.062 in OD, 2 Circuits, 5.95 in Nut Length, 15/16-16 UN Thread, Right Hand Thread, 0.2 in Thread Lead, 1080 lb Dynamic/9280 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel
SPECIFICATIONS
| Load Capacity | : | 1080 lb Dynamic/9280 lb Static |
| Material | : | Steel |
| Nut Length | : | 5.95 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right Hand |
| Thread Size | : | 15/16-16 UN |
| Type | : | Type G Double Preloaded Round |
| Screw Diameter | : | 1/2 in |
| Thread Lead | : | 0.2 in |
| Number of Circuits | : | 2 |
| Outside Diameter | : | 1.062 in |
