S201M-B10

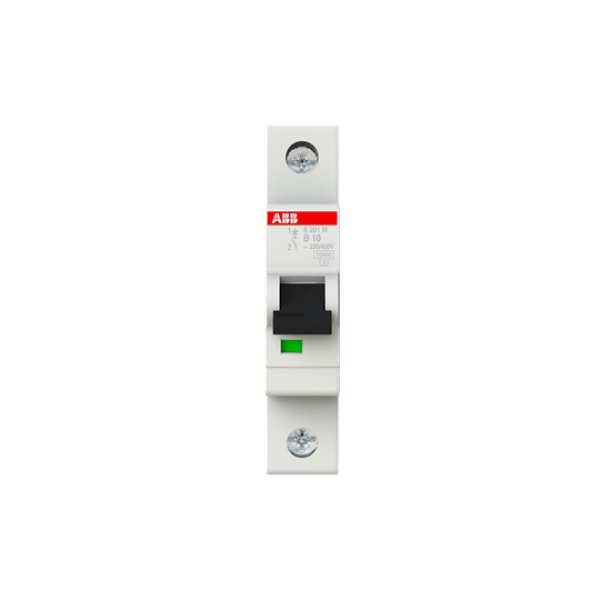

ABB S201M-B10 S200M High Performance Miniature Circuit Breaker, 230/400 VAC, 10 A, 10 kA Interrupt, 1 Poles, B-Curve Thermal Magnetic Trip
- CP#:
- Item#: 486130
- Mfr#: S201M-B10
- UPC: 804325534178
- MCB provides compact supplementary, energy limiting, circuit protection
- Auxiliary contacts
- One delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection
- Finger safe and multi-function terminals
- Designed for protection and control of the circuits against overloads and short-circuits
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 VAC) and rated currents (up to 63 A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
ABB Miniature Circuit Breaker, High Performance, Series: S200M, 230/400 VAC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
