TB Wood's® 6S15/16
TB Wood's®

TB Wood's® 6S15/16

loading
TB Wood's® 6S15/16
TB Wood's®
Email Print

6S15/16

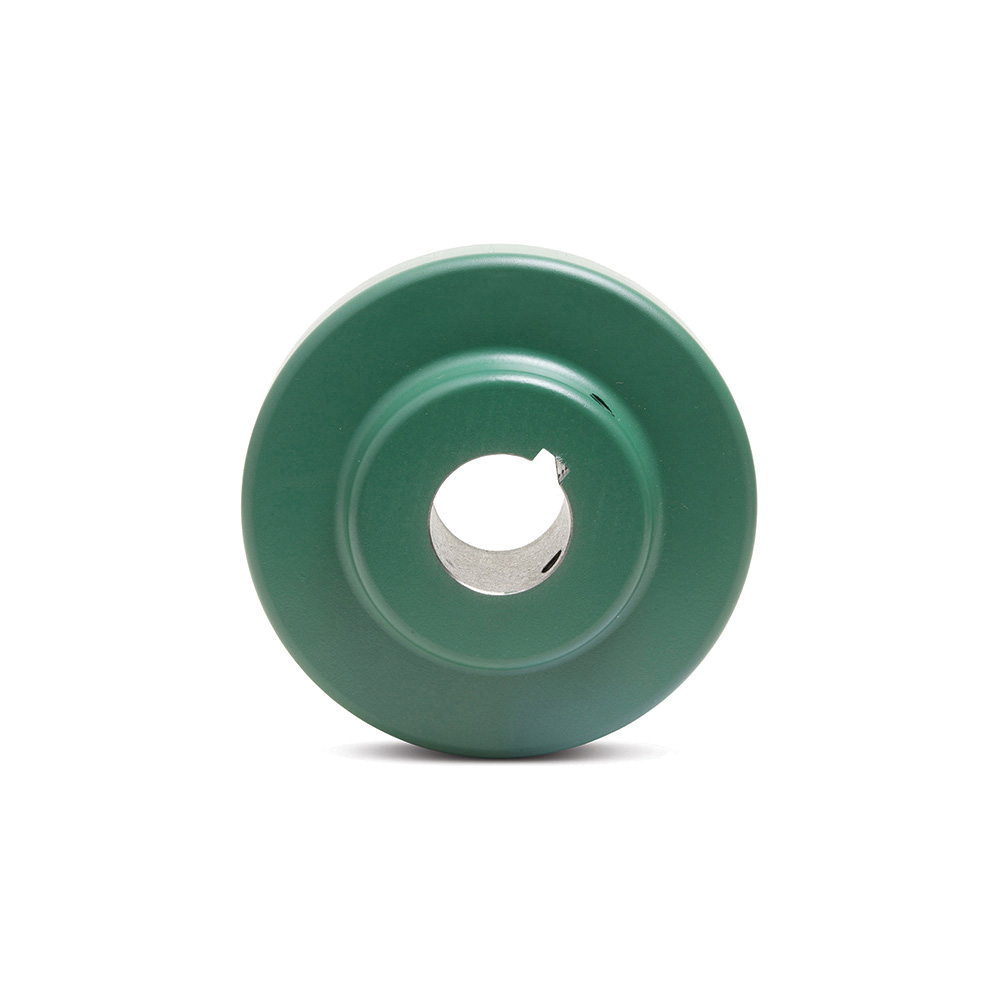

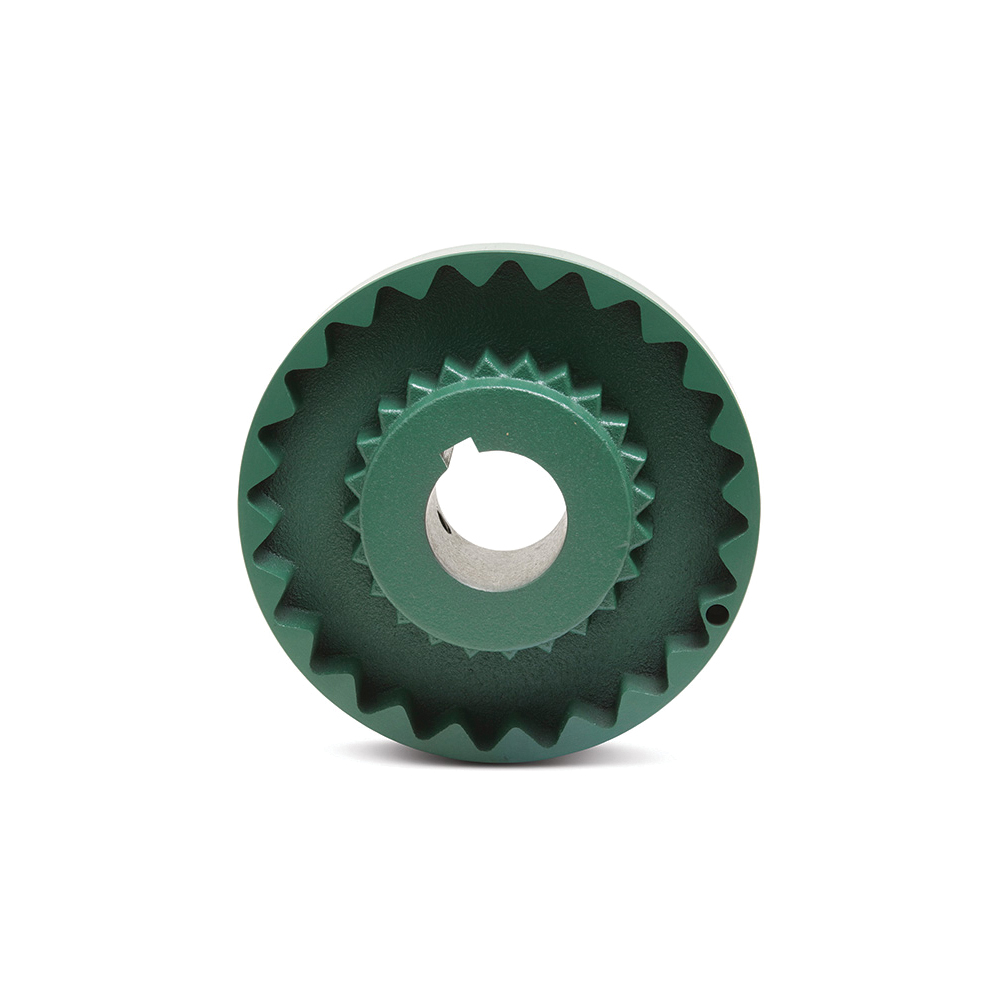

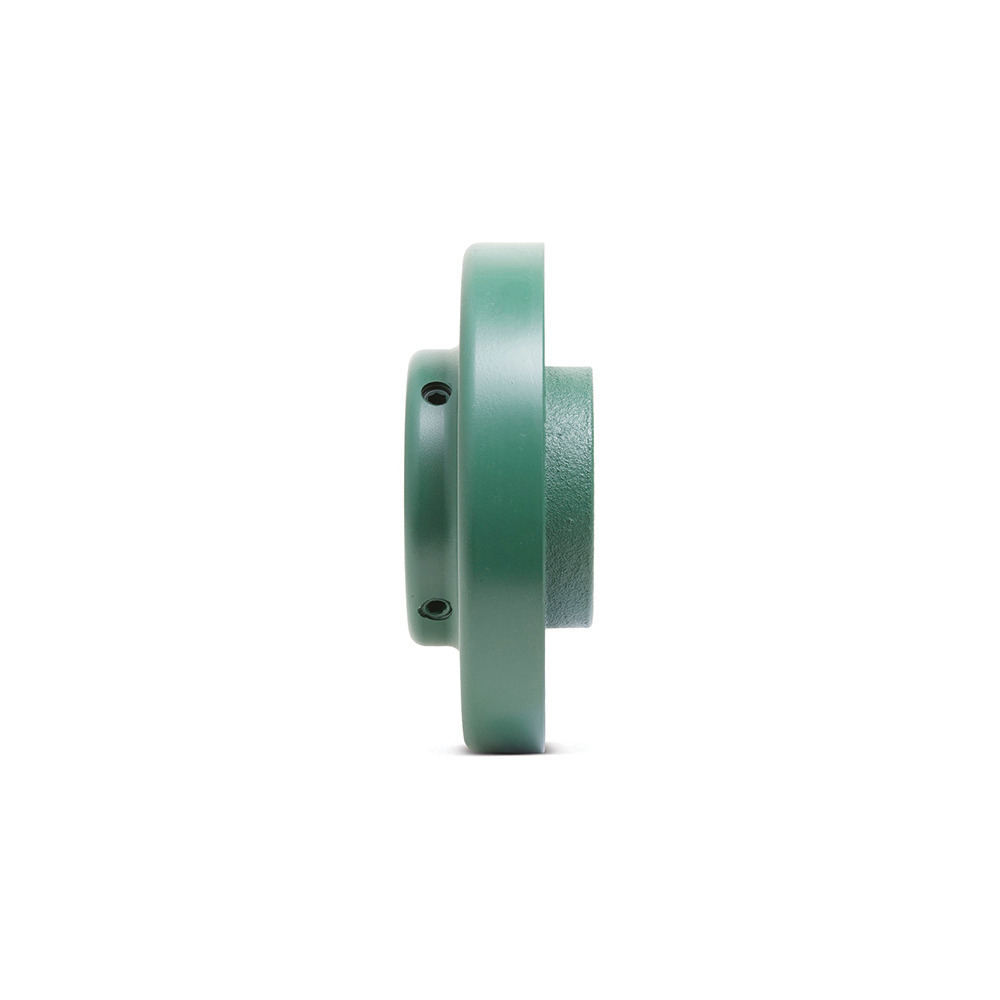

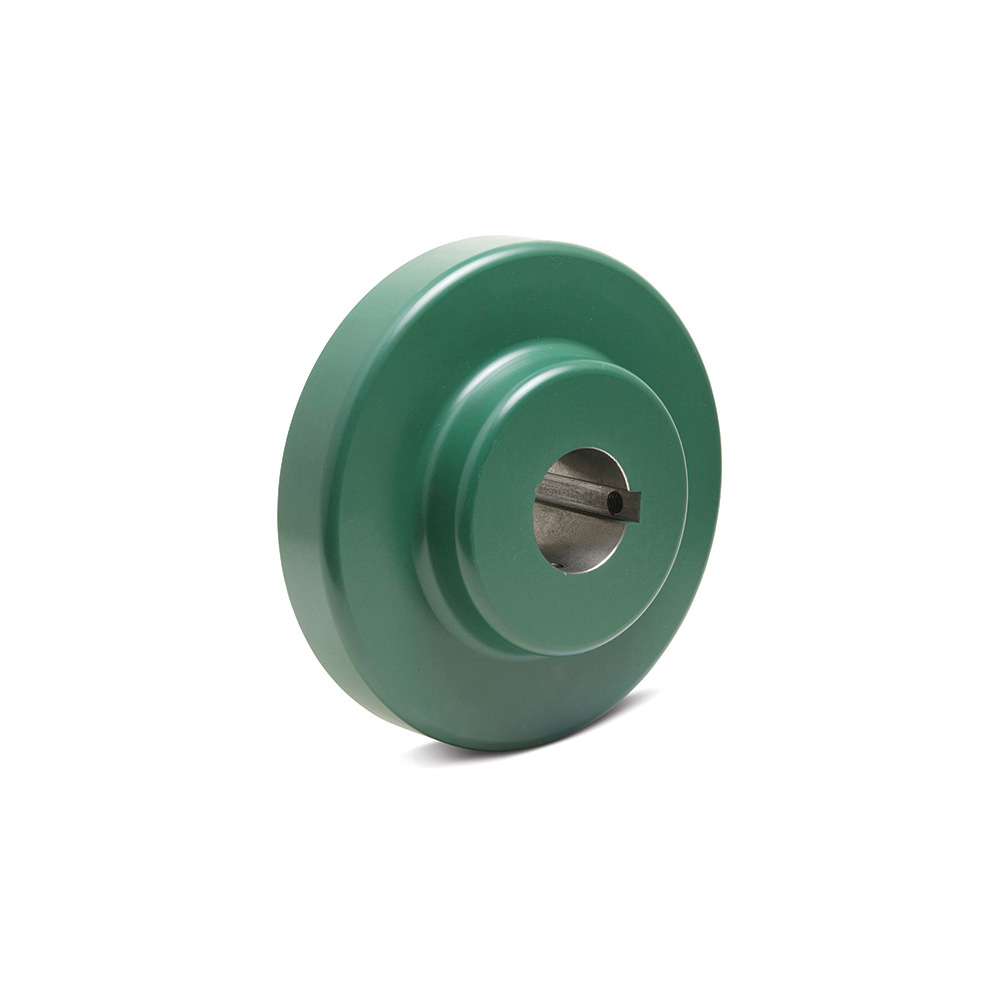

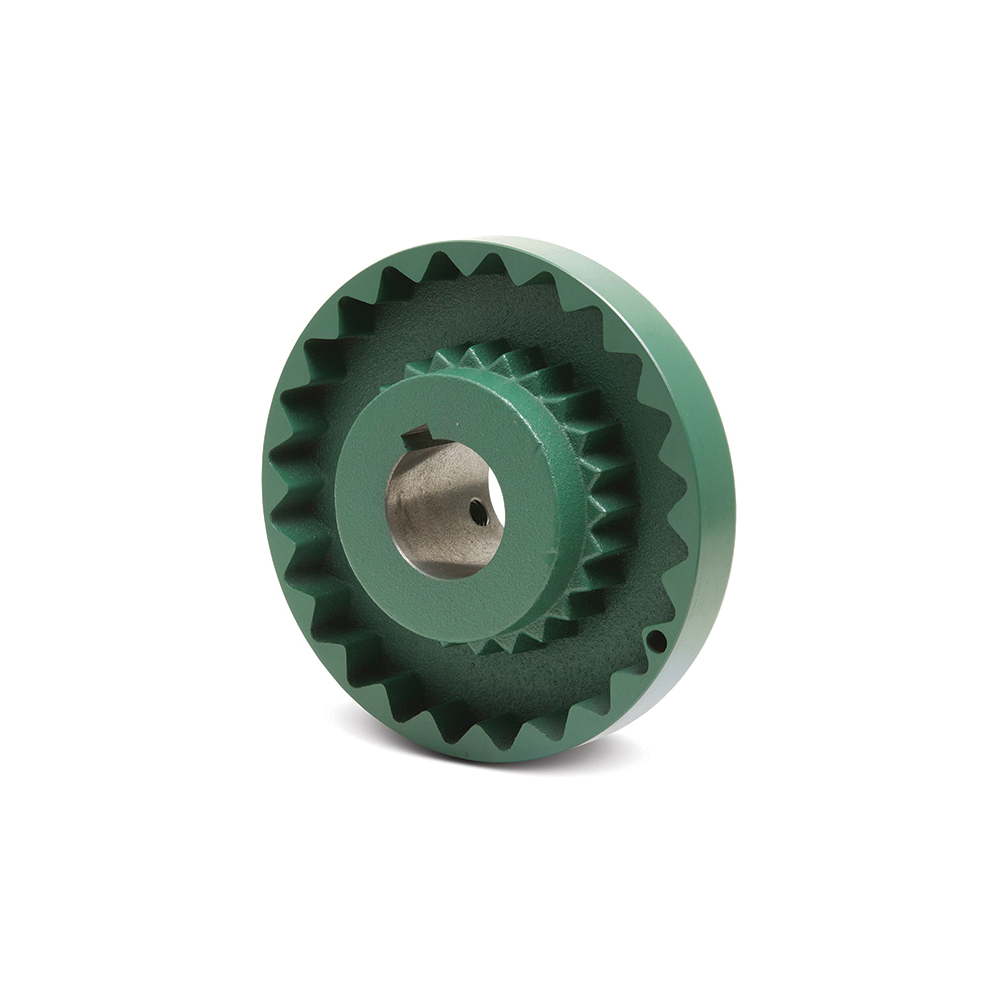

TB Wood's® Sure-Flex® Plus 6S15/16 Bore-To-Size Type S Sleeve Coupling Flange, 06 Coupling, 15/16 in Bore Dia, 1-5/8 in Length Through Bore, 2-1/2 in Hub Dia, Cast Iron

  • Item#: 6SX.9375,.25X.125KW
  • Mfr#: 6S15/16
  • UPC: 698672640169
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Type S flanges sizes 6 through 16 are manufactured of high strength cast iron then bored-to-size for slip fit on standard shafts. Size 5 is made of sintered carbon steel. Flanges are easy to install and remove, and are stocked in a wide range of bore sizes. All sleeve materials may be used with type S flanges.

TB Wood's® Sure-Flex® Plus Sleeve Coupling Flange, Bore-To-Size Type S, 06 Coupling, 15/16 in Bore Dia, 2-1/2 in Hub Dia, 17/32 in Hub Length, 1/4 x 1/8 in Keyway, 6000 rpm Maximum, 1-5/8 in Length Through Bore, 5/16-18 UNC x 5/8 in L Setscrew Screw, Cast Iron

SPECIFICATIONS

Type      :      Bore-To-Size Type S
Inside Diameter      :      15/16 in
Material      :      Cast Iron
Maximum Speed      :      6000 rpm
Screw Size      :      5/16-18 UNC x 5/8 in L Setscrew
Hub Length      :      17/32 in
Keyway Size      :      1/4 x 1/8 in
Coupling Size      :      06
Length Through Bore      :      1-5/8 in
Hub Diameter      :      2-1/2 in

DOCUMENTS

  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/389/TB_Woods_10_Manual.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/576/TB_Woods_1020T12_Catalog.pdf
