TRE4Y

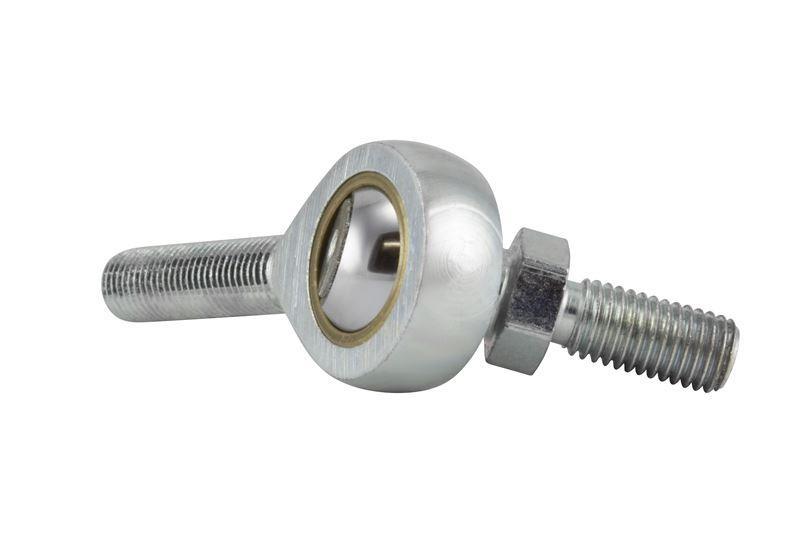

Spherco® TRE4Y TRE Male Spherical Plain Rod End, 1/4 in Dia Bore, 3/4 in OD, 3/8 in W, 1700 lb Load, Carbon Steel
- CP#:
- Item#: TRE 4YRBC
- Mfr#: TRE4Y
- UPC: 637400188245
- 8 deg misalignment angle
- Good conformity
- Low friction
- Long dynamic life
- Smooth feel
- Brass inserts
- Right handed thread handedness
- Precision performance
- Non-lubricatable
- 4-piece metal to metal bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Male, Series: TRE, 1/4 in Bore Dia, 3/4 in Outside Dia, 3/8 in Width, UNF-3A Thread, 1/4-28 Thread, 1.562 in Center Line Length, 1700 lb, 250 deg F, Carbon Steel, 1.937 in H
SPECIFICATIONS
| Center Line Length | : | 1.562 in |
| Series | : | TRE |
| Dimensions | : | 1.937 in H |
| Load Capacity | : | 1700 lb |
| Material | : | Carbon Steel |
| Outside Diameter | : | 3/4 in |
| Thread Size | : | 1/4-28 |
| Thread Type | : | UNF-3A |
| Width | : | 3/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
