CTMDL6

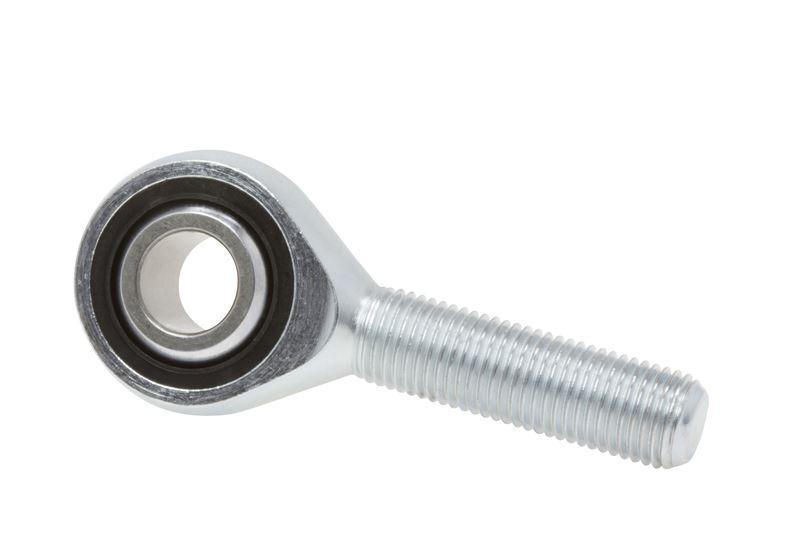

Spherco® CTMDL6 CTMDL Male Spherical Plain Rod End, 3/8 in Dia Bore, 1 in OD, 1/2 in W, 2150 lb Load, Carbon Steel
- CP#:
- Item#: CTMDL 6RBC
- Mfr#: CTMDL6
- UPC: 637400182045
- 6 deg misalignment angle
- Maintenance free virtually no radial clearance
- Dimensional stability
- Left handed thread handedness
- Commercial performance
- Self-lubricating thermoplastic race
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Male, Series: CTMDL, 3/8 in Bore Dia, 1 in Outside Dia, 1/2 in Width, UNF-3A Thread, 3/8-24 Thread, 1.938 in Center Line Length, 2150 lb, 125 deg F, Carbon Steel, 2.438 in H
SPECIFICATIONS
| Center Line Length | : | 1.938 in |
| Series | : | CTMDL |
| Dimensions | : | 2.438 in H |
| Load Capacity | : | 2150 lb |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1 in |
| Thread Size | : | 3/8-24 |
| Thread Type | : | UNF-3A |
| Width | : | 1/2 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
