CTMDL12

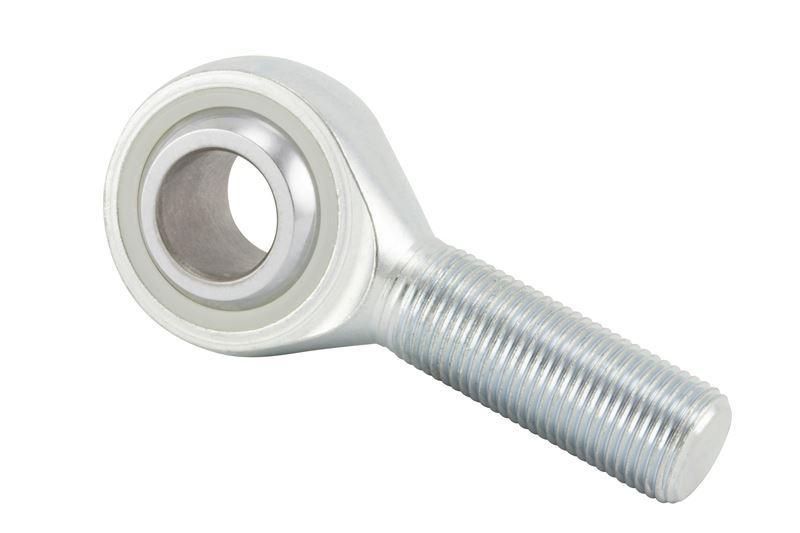

Spherco® CTMDL12 CTMDL Male Spherical Plain Rod End, 3/4 in Dia Bore, 1-3/4 in OD, 7/8 in W, 6600 lb Load, Carbon Steel
- CP#:
- Item#: CTMDL 12RBC-P01
- Mfr#: CTMDL12
- UPC: 637400182007
- 7 deg misalignment angle
- Maintenance free virtually no radial clearance
- Dimensional stability
- Left handed thread handedness
- Commercial performance
- Self-lubricating thermoplastic race
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Male, Series: CTMDL, 3/4 in Bore Dia, 1-3/4 in Outside Dia, 7/8 in Width, UNF-3A Thread, 3/4-16 Thread, 2-7/8 in Center Line Length, 6600 lb, 125 deg F, Carbon Steel, 3-3/4 in H
SPECIFICATIONS
| Center Line Length | : | 2-7/8 in |
| Dimensions | : | 3-3/4 in H |
| Load Capacity | : | 6600 lb |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1-3/4 in |
| Thread Size | : | 3/4-16 |
| Inside Diameter | : | 3/4 in |
| Thread Type | : | UNF-3A |
| Mounted | : | Yes |
| Measurement System | : | Imperial |
| Width | : | 7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
