CFF12YN

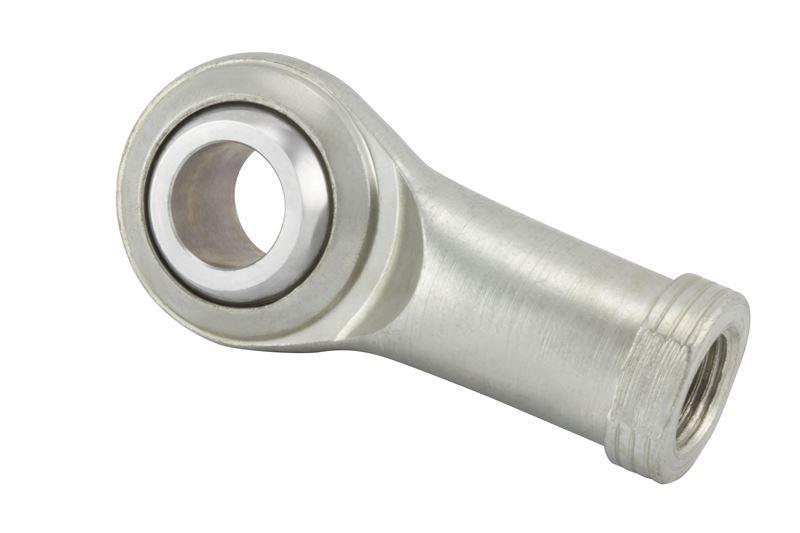

Spherco® CFF12YN CFF Female Spherical Plain Rod End, 3/4 in Dia Bore, 1-3/4 in OD, 7/8 in W, 14000 lb Load, Carbon Steel
- CP#:
- Item#: CFF 12YNRBC-P01
- Mfr#: CFF12YN
- UPC: 637400191542
- 7 deg misalignment angle
- High load capacity
- Reversing load
- Shock load
- Cost effective
- Right handed thread handedness
- Commercial extra capacity performance
- Lubricatable
- 2-piece metal to metal bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Female, Series: CFF, 3/4 in Bore Dia, 1-3/4 in Outside Dia, 7/8 in Width, UNF-3B Thread, 3/4-16 Thread, 2-7/8 in Center Line Length, 14000 lb, 250 deg F, Carbon Steel, 3-3/4 in H
SPECIFICATIONS
| Center Line Length | : | 2-7/8 in |
| Dimensions | : | 3-3/4 in H |
| Load Capacity | : | 14000 lb |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1-3/4 in |
| Thread Size | : | 3/4-16 |
| Inside Diameter | : | 3/4 in |
| Thread Type | : | UNF-3B |
| Mounted | : | Yes |
| Measurement System | : | Imperial |
| Width | : | 7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
