- Spherco® ARL4N
ARL4N

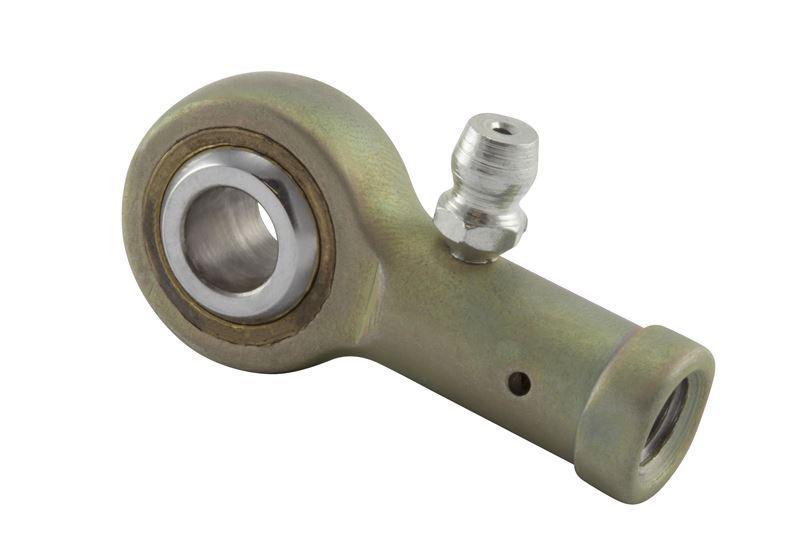

Spherco® ARL4N ARL N Female Spherical Plain Rod End, 1/4 in Dia Bore, 3/4 in OD, 3/8 in W, 6680 lb Load, 4130/4340 Alloy Steel
- CP#:
- Item#: ARL 4NRBC
- Mfr#: ARL4N
- UPC: 637400178963
- 8 deg misalignment angle
- Aluminum bronze inserts
- High strength body
- High capacity version
- Left handed thread handedness
- Precision extra capacity performance
- Lubricatable
- 4-piece metal to metal bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Female, Series: ARL N, 1/4 in Bore Dia, 3/4 in Outside Dia, 3/8 in Width, UNF-3B Thread, 1/4-28 Thread, 1.312 in Center Line Length, 6680 lb, 250 deg F, 4130/4340 Alloy Steel, 1.687 in H
SPECIFICATIONS
| Center Line Length | : | 1.312 in |
| Series | : | ARL N |
| Dimensions | : | 1.687 in H |
| Load Capacity | : | 6680 lb |
| Material | : | 4130/4340 Alloy Steel |
| Outside Diameter | : | 3/4 in |
| Thread Size | : | 1/4-28 |
| Thread Type | : | UNF-3B |
| Width | : | 3/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
