AREL5

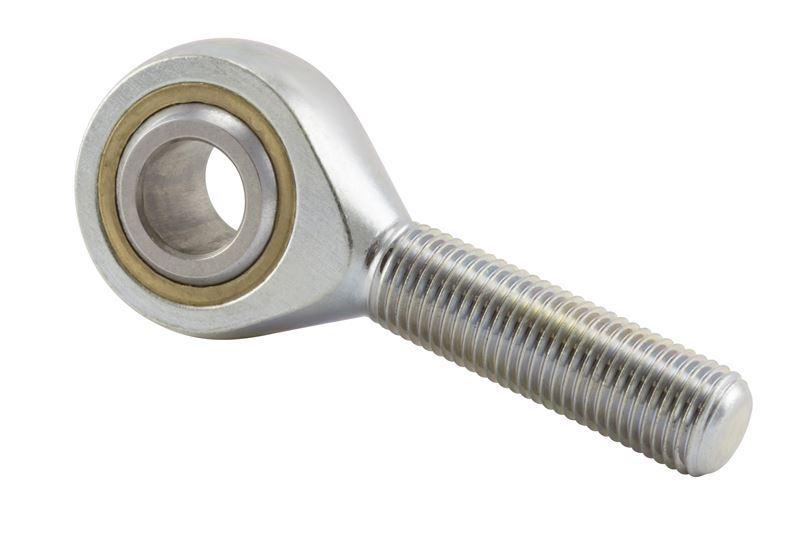

Spherco® AREL5 AREL Male Spherical Plain Rod End, 5/16 in Dia Bore, 7/8 in OD, 0.437 in W, 6880 lb Load, 4130/4340 Alloy Steel
- CP#:
- Item#: AREL 5RBC
- Mfr#: AREL5
- UPC: 637400177102
- 7 deg misalignment angle
- Aluminum bronze inserts
- High strength body
- High capacity version
- Left handed thread handedness
- Precision extra capacity performance
- Lubricatable
- 4-piece metal to metal bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherco® offers a wide range of rod end types and sizes. Spherco®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two-piece designs and self-lubricating rod end with engineered thermoplastic races or Teflon® liners with a wide range of optional features such as lubrication fittings, left hand threads, and keyway slots.
Spherco® Spherical Plain Rod End, Male, Series: AREL, 5/16 in Bore Dia, 7/8 in Outside Dia, 0.437 in Width, UNF-3A Thread, 5/16-24 Thread, 1-7/8 in Center Line Length, 6880 lb, 250 deg F, 4130/4340 Alloy Steel, 2-5/16 in H
SPECIFICATIONS
| Center Line Length | : | 1-7/8 in |
| Series | : | AREL |
| Dimensions | : | 2-5/16 in H |
| Load Capacity | : | 6880 lb |
| Material | : | 4130/4340 Alloy Steel |
| Outside Diameter | : | 7/8 in |
| Thread Size | : | 5/16-24 |
| Thread Type | : | UNF-3A |
| Width | : | 0.437 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/429/Spherco_AR10_Catalog.pdf
