MLECH71914HVUJ74S

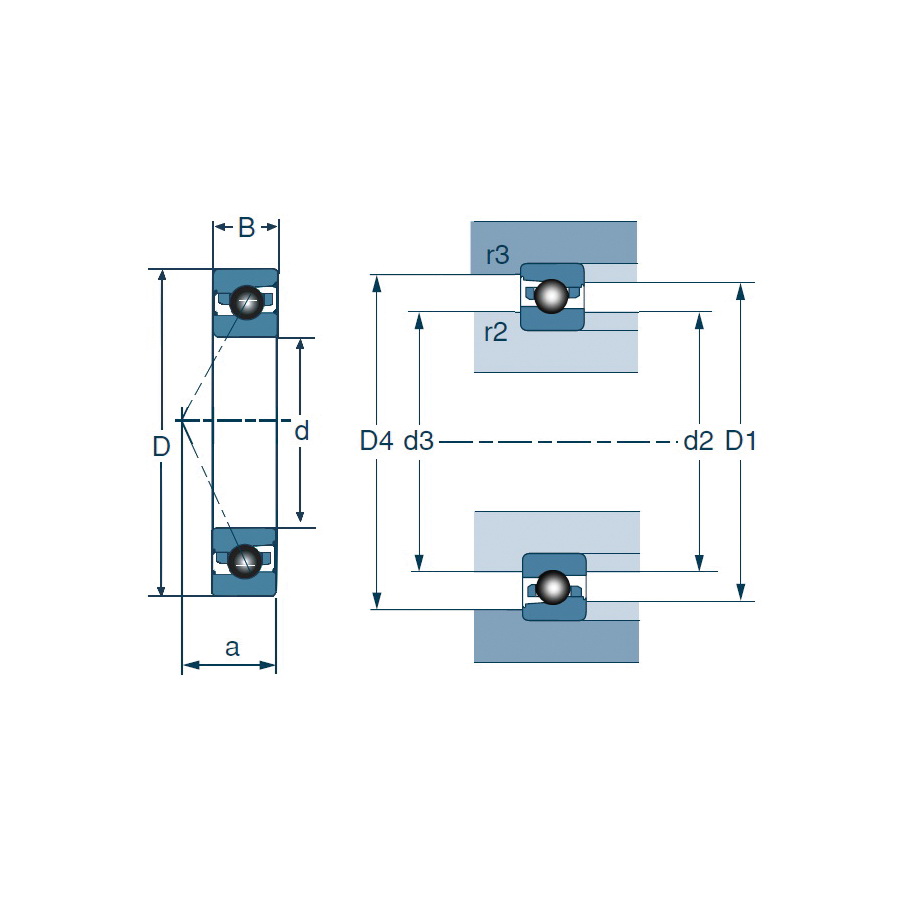

SNR® MLECH71914HVUJ74S 719 Round Bore Standard Angular Contact Ball Bearing, 70 mm Dia Bore, 100 mm OD, 1 Rows, 16 mm W, 25 deg, 24300 N Load
- CP#:
- Item#: MLECH71914HVUJ74S
- Mfr#: MLECH71914HVUJ74S
- Give great assembly rigidity, especially when preloaded
- Always mounted in opposition with another bearing of the same type
- Non-contact seal
- Light preload
- Stratified cage
- High speed range
- 23700 N dynamic/24300 N static
- Hybrid ceramic ball
- ISO class 4 tolerance rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SNR® Angular Contact Ball Bearing, Round Bore Standard, Series: 719, 70 mm Bore, 100 mm OD, 1 Rows, 16 mm Width, 25 deg Contact Angle, Double Seal Closure, 24300 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Phenolic Cage, 15000 rpm Grease/23500 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 719 |
| Bearing Material | : | High Carbon Chrome Steel |
| Contact Angle | : | 25 deg |
| Load Capacity | : | 24300 N |
| Maximum Speed | : | 15000 rpm Grease/23500 rpm Oil |
| Outside Diameter | : | 100 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Nitrile Rubber |
| Width | : | 16 mm |
