ZSE40A-N01-T

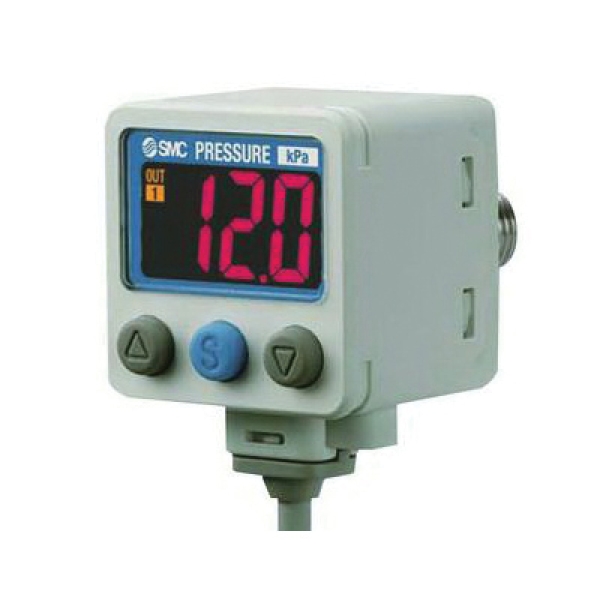

SMC® ZSE40A-N01-T ZSE40A High Precision Digital Pressure Switch With 2-Color Display, 0 to 14.69 psi, 1/8 in NPT, PNP, 45 mA at 12 to 24 VDC
- CP#:
- Item#: ZSE40A-N01-T
- Mfr#: ZSE40A-N01-T
- Capable of copying up to 10 switches simultaneously
- 3-step setting
- Space saving design with several piping and mounting variations
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The ZSE40A(F) series is a high precision digital pressure switch, providing improved functions, performance and variations over the previous ISE40 series. Abnormal values can be seen at a glance on the 2-color display. The settings of the master pressure switch can be copied to up to 10 slave pressure switches, reducing the setting work, and preventing mistakes in setting. Other features include: simple 3-step setting, analog output, wide variety of piping variations, and a power-saving function for MPa kPa.
SMC® Digital Pressure Switch, High Precision, Series: ZSE40A, 0 to 14.69 psi, 1/8 in NPT, PNP Output, 45 mA at 12 to 24 VDC, +/-0.2% FS +/- 1 Digit Repeatability, LCD, 23 to 122 deg F, 42.2 mm L x 30 in W x 40 mm H. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 42.2 mm L x 30 in W x 40 mm H |
| Display Type | : | LCD |
| Repeatability | : | +/-0.2% FS +/- 1 Digit |
| Series | : | ZSE40A |
| Temperature Rating | : | 23 to 122 deg F |
| Type | : | High Precision |
| Measuring Range | : | 0 to 14.69 psi |
| Connection Size | : | 1/8 in NPT |
| Output | : | PNP |
| Electrical Ratings | : | 45 mA at 12 to 24 VDC |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_ZSE40A-N01-T_Catalog.pdf
