VZM550-N01-08

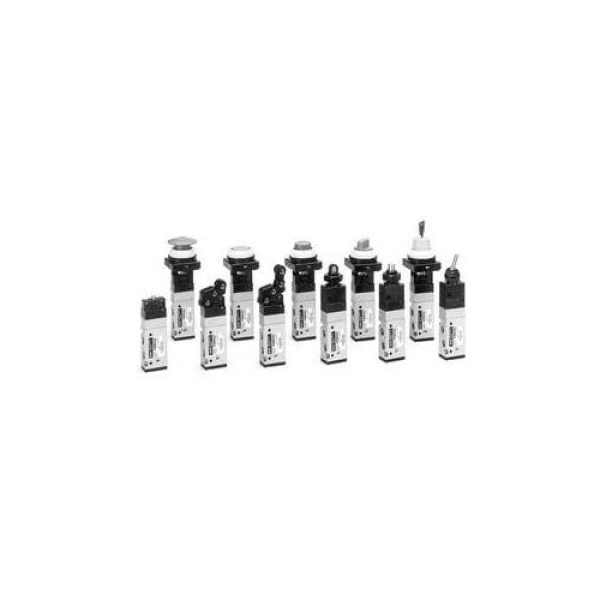

SMC® VZM550-N01-08 VZM500 Mechanical Valve, 1/8 in Nominal, NPT End Style, 0.15 to 0.7 MPa Pressure, 0.6 Cv Flow Rate, 4 Ways, 2 Positions
- CP#:
- Item#: VZM550-N01-08
- Mfr#: VZM550-N01-08
- Fluid, air, inert gas
- Operating pressure 0.15 to 0.7MPa
- Ambient and fluid temp, -5 deg to 60 deg C (no freezing)
- Effective area (Cv) 0.6
- Port size, main valve Rc(PT) 1/8, pilot valve (EXH) M5x0.8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, VZM550-N01-08, Mechanical Valve, Series: VZM500, 1/8 in Nominal, NPT End Style, 0.15 to 0.7 MPa Pressure, -5 to 60 deg C, 0.6 Cv Flow Rate, 4 Ways, 2 Positions, Media: Air/Inert Gas, Toggle Actuator, Aluminum Body, Nitrile Softgoods, 28 mm H x 18 mm W x 129.5 mm L Dimensions
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Body Material | : | Aluminum |
| Dimensions | : | 28 mm H x 18 mm W x 129.5 mm L |
| Media | : | Air/Inert Gas |
| Series | : | VZM500 |
| Softgoods Material | : | Nitrile |
| Temperature Rating | : | -5 to 60 deg C |
| Nominal Size | : | 1/8 in |
| End Style | : | NPT |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Flow Rate | : | 0.6 Cv |
| Number of Ways | : | 4 |
| Number of Positions | : | 2 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_VM_36A_Catalog.pdf
