VM830-N01-01

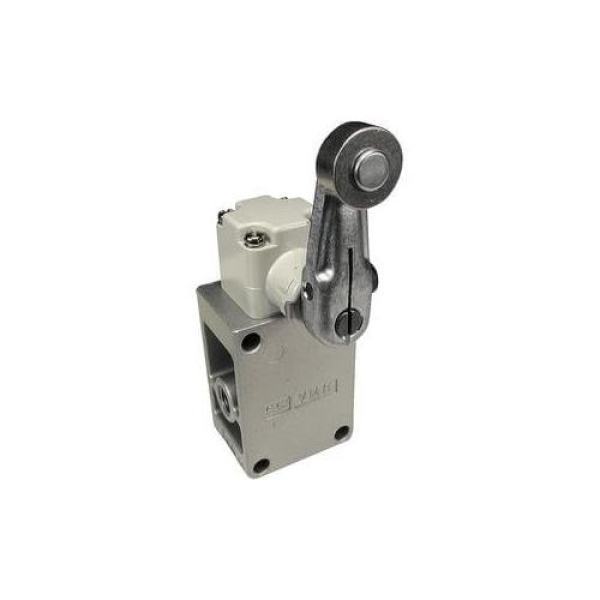

SMC® VM830-N01-01 VM800 Mechanical Valve, 1/8 in Nominal, NPT End Style, -100 kPa to 1 MPa Pressure, 0.33 Cv Flow Rate, 2 Ways, 2 Positions
- CP#:
- Item#: VM830-N01-01
- Mfr#: VM830-N01-01
- 100 kPa to 1.0 MPa air Operating pressure
- Effective area - 6mm sq
- 5 deg to 60 deg C ambient and fluid temperature
- Port size (nominal size) - Rc(PT) 1/8 (6A)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, VM830-N01-01, Mechanical Valve, Series: VM800, 1/8 in Nominal, NPT End Style, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, 0.33 Cv Flow Rate, 2 Ways, 2 Positions, Media: Air/Inert Gas, Roller Lever Actuator, Aluminum Body, Nitrile Softgoods, 59.5 mm H x 40 mm W x 113.4 mm L Dimensions
SPECIFICATIONS
| Actuator Type | : | Roller Lever |
| Body Material | : | Aluminum |
| Dimensions | : | 59.5 mm H x 40 mm W x 113.4 mm L |
| Media | : | Air/Inert Gas |
| Series | : | VM800 |
| Softgoods Material | : | Nitrile |
| Temperature Rating | : | -5 to 60 deg C |
| Nominal Size | : | 1/8 in |
| End Style | : | NPT |
| Pressure Rating | : | -100 kPa to 1 MPa |
| Flow Rate | : | 0.33 Cv |
| Number of Ways | : | 2 |
| Number of Positions | : | 2 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_VM_36A_Catalog.pdf
