SY5140-5DZ

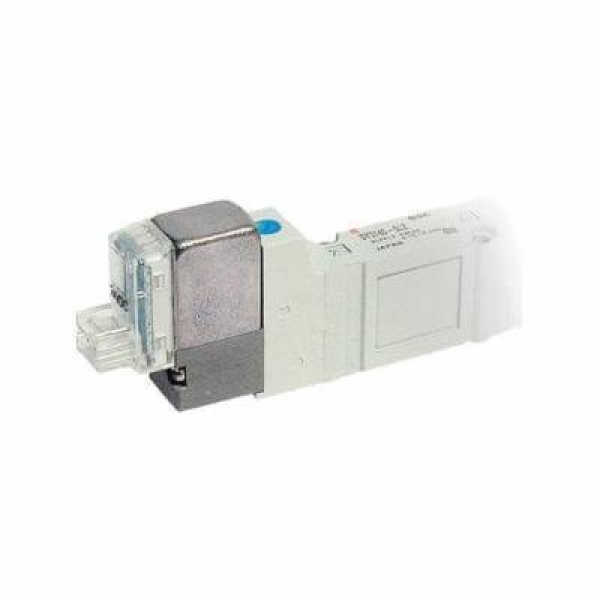

SMC® SY5140-5DZ SY5000 5-Port Single Solenoid Valve With Connector, 1/4 in Port, 0.15 to 0.7 MPa Pressure, 4 Ways, 2 Positions
- Item#: SY5140-5DZ
- Mfr#: SY5140-5DZ
- Air fluid
- 3/5/6/12/24 VDC/100/110/200/220 VAC rated coil voltage
- 32 msec or less response time at 0.5 mPa without indicator light and surge voltage suppressor
- 2-position single function
- Base mounted non plug in single/stacking base, plug in stacking base piping
- Internal pilot
- 24 VDC solenoid voltage
- DIN terminal with connector lead wire
- Light and surge suppressor
- Non-locking push style manual override
- Base mounted without sub plate port size
- Body ported 10.6 sq-mm effective area
- Base mounted 12.6 sq-mm effective area
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The Series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
SMC® Solenoid Valve, 5-Port Single, Series: SY5000, 1/4 in, 0.15 to 0.7 MPa, -10 to 50 deg C, 4 Ways, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Aluminum Body, Rubber Seal, 114.9 mm L x 35 mm W x 83.4 mm H
SPECIFICATIONS
| Actuator Type | : | Pilot Operated |
| Body Material | : | Die-Cast Aluminum |
| Dimensions | : | 114.9 mm L x 35 mm W x 83.4 mm H |
| Media | : | Air |
| Series | : | SY5000 |
| Softgoods Material | : | Rubber Seal |
| Temperature Rating | : | -10 to 50 deg C |
| Type | : | 5-Port Single |
| Port Size | : | 1/4 in |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Number of Ways | : | 4 |
| Number of Positions | : | 2 |
