SMC®
SV3100-5FU

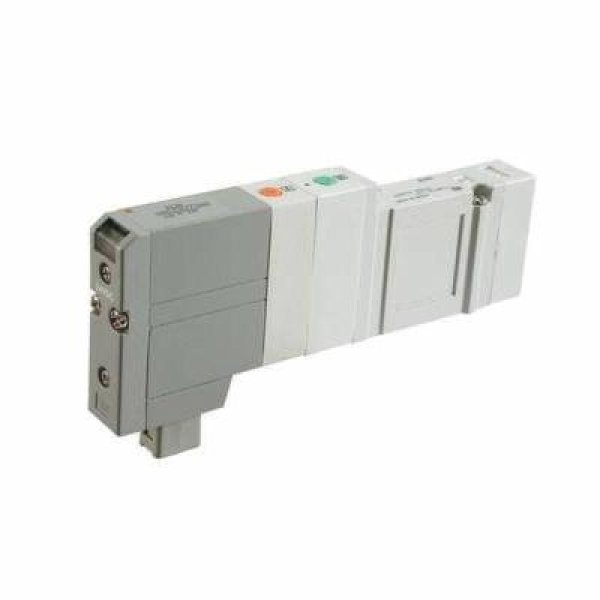

SMC® SV3100-5FU SV3000 Single Solenoid Valve With Light/Surge Voltage Suppressor, 0.15 to 0.7 MPa Pressure, 4 Ways, 2 Positions
- Item#: SV3100-5FU
- Mfr#: SV3100-5FU
- 24 VDC rated voltage
- Air fluid
- 50-million cycles or more service life
- Unrestricted mounting orientation
- 2-position single function
- Internal pilot
- Non-locking push style manual override
- Double manifold wiring
- Light and surge suppressor
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The SV Series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
SMC® Solenoid Valve, Single, Series: SV3000, 0.15 to 0.7 MPa, -10 to 50 deg C, 4 Ways, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Aluminum Body, Rubber Seal
SPECIFICATIONS
| Actuator Type | : | Pilot Operated |
| Body Material | : | Die-Cast Aluminum |
| Media | : | Air |
| Series | : | SV3000 |
| Softgoods Material | : | Rubber Seal |
| Temperature Rating | : | -10 to 50 deg C |
| Type | : | Single |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Number of Ways | : | 4 |
| Number of Positions | : | 2 |
