SMC® NVM430-N01-33
SMC®

SMC® NVM430-N01-33

loading
SMC®
Email Print

NVM430-N01-33

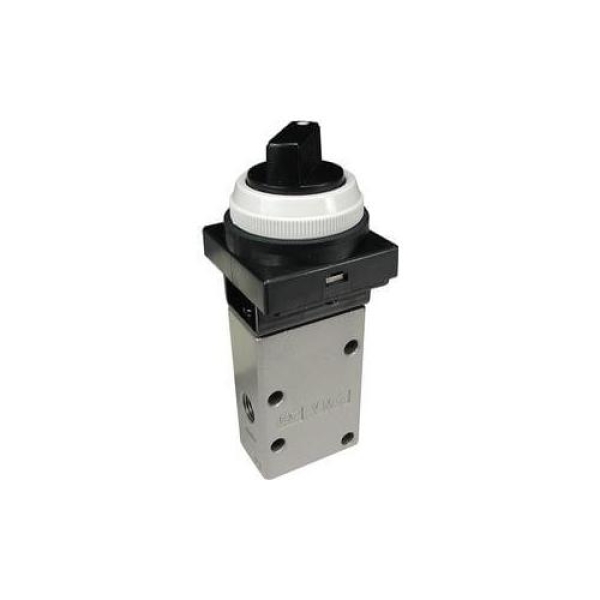

SMC® NVM430-N01-33 NVM Mechanical Valve, 1/8 in Nominal, NPT End Style, -100 kPa to 1 MPa Pressure, 0.38 Cv Flow Rate, 2 Ways, 2 Positions

  • Item#: NVM430-N01-33
  • Mfr#: NVM430-N01-33
  • Fluid, air Operating pressure, -100kPa to 1.0MPa
  • Effective area (Cv) 7mm sq (0.38)
  • Ambient and fluid temperature range from 5 deg to 60 deg C (no freezing)
  • Port size (nominal size) 1/8 (6A)
  • North American threads-NPT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

SMC®, NVM430-N01-33, Mechanical Valve, Series: NVM, 1/8 in Nominal, NPT End Style, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, 0.38 Cv Flow Rate, 2 Ways, 2 Positions, Media: Air/Inert Gas, Push Button Actuator, Aluminum Body, Nitrile Softgoods, 35 mm H x 21 mm W x 91.6 mm L Dimensions

SPECIFICATIONS

Actuator Type      :      Push Button
Body Material      :      Aluminum
Dimensions      :      35 mm H x 21 mm W x 91.6 mm L
Media      :      Air/Inert Gas
Series      :      NVM
Softgoods Material      :      Nitrile
Temperature Rating      :      -5 to 60 deg C
Nominal Size      :      1/8 in
End Style      :      NPT
Pressure Rating      :      -100 kPa to 1 MPa
Flow Rate      :      0.38 Cv
Number of Ways      :      2
Number of Positions      :      2

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_VM_36A_Catalog.pdf
