NCMB150-0200

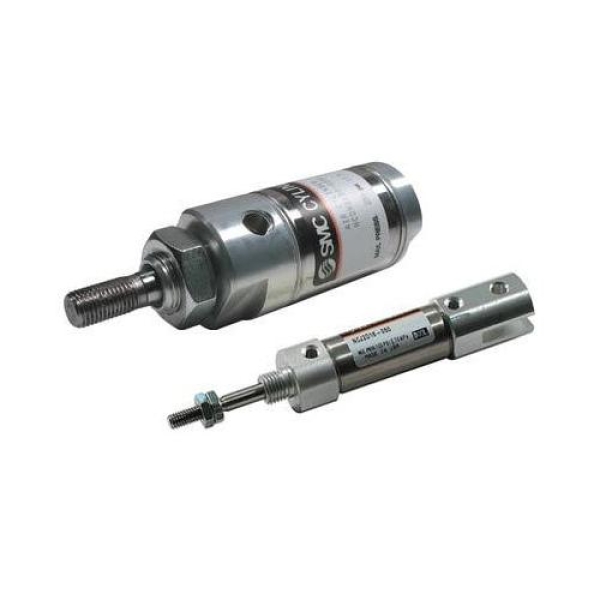

SMC® NCMB150-0200 NCM Single Rod Air Cylinder, 1-1/2 in Cylinder Bore, 2 in L Stroke, Double Acting Cylinder Action, Nose Mounting
- CP#:
- Item#: NCMB150-0200
- Mfr#: NCMB150-0200
- Double acting single rod
- Mounts are nose, rear, end, rod, block
- Variety of switches and lead wire lengths
- Optional Rod Boot
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, NCMB150-0200, Air Cylinder, Single Rod, Series: NCM, 1-1/2 in Cylinder Bore, 2 in Stroke Length, Double Acting Cylinder Action, 1/8 in NPT Port, 0.437 in Rod Diameter, 8 to 250 psi Pressure, 40 to 140 deg F, Nose Mounting, Stainless Steel, 6.44 in L x 1.56 in W Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 6.44 in L x 1.56 in W |
| Material | : | Stainless Steel |
| Port Size | : | 1/8 in NPT |
| Pressure Rating | : | 8 to 250 psi |
| Rod Diameter | : | 0.437 in |
| Series | : | NCM |
| Temperature Rating | : | 40 to 140 deg F |
| Type | : | Single Rod |
| Cylinder Bore Size | : | 1-1/2 in |
| Stroke Length | : | 2 in |
| Cylinder Action | : | Double Acting |
| Mounting Type | : | Nose |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_NCMC075_0100C_Catalog.pdf
