NCDQ8B056-050

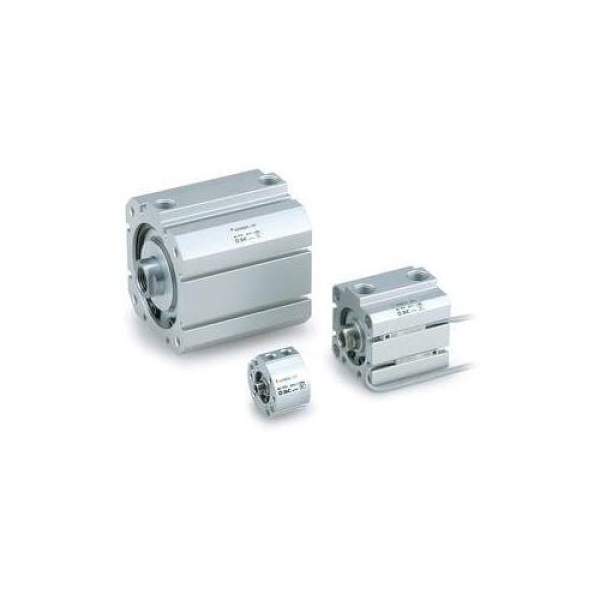

SMC® NCDQ8B056-050 NCQ8 Single Rod Compact Cylinder, 56 mm Cylinder Bore, 1/2 in L Stroke, Double Acting Cylinder Action, Through Hole Mounting
- CP#:
- Item#: NCDQ8B056-050
- Mfr#: NCDQ8B056-050
- Double acting, single rod type
- Cylinder stroke range from 1/8 in to 4 in
- Maximum operating pressure 200PSI
- Operating temperature range from 15 to 150 deg F
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, NCDQ8B056-050, Compact Cylinder, Single Rod, Series: NCQ8, 56 mm Cylinder Bore, 1/2 in Stroke Length, Double Acting Cylinder Action, 10 to 32 UNF Port, #8 to 32 Female UNC Rod Thread, 11 to 200 psi Pressure, 15 to 140 deg F, Through Hole Mounting, 1.13 in H x 1.06 in W Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 1.13 in H x 1.06 in W |
| Port Size | : | 10 to 32 UNF |
| Pressure Rating | : | 11 to 200 psi |
| Rod Thread Size | : | #8 to 32 Female UNC |
| Series | : | NCQ8 |
| Temperature Rating | : | 15 to 140 deg F |
| Type | : | Single Rod |
| Cylinder Bore Size | : | 56 mm |
| Stroke Length | : | 1/2 in |
| Cylinder Action | : | Double Acting |
| Mounting Type | : | Through Hole |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_NCQ8B056_250_Catalog.pdf
