MXS8-50A

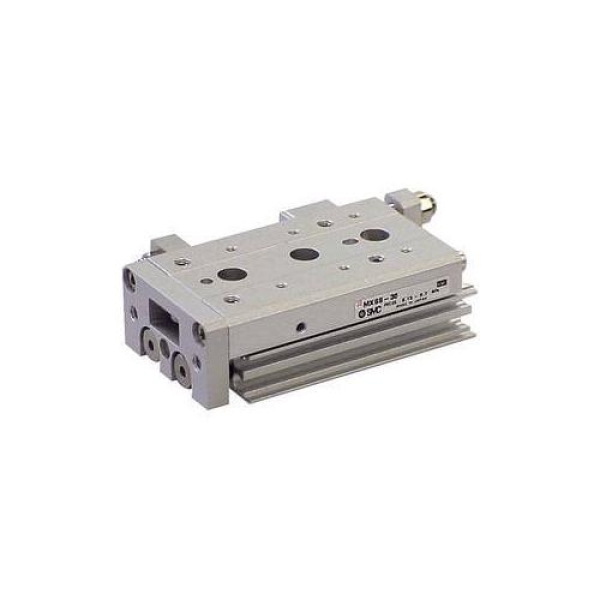

SMC® MXS8-50A MXS Standard Precision Slide Table, 8 mm Cylinder Bore, 50 mm L Stroke, 71 N Push, 53 N Pull Max Force, Double Acting Cylinder Action
- CP#:
- Item#: MXS8-50A
- Mfr#: MXS8-50A
- Rubber bumper with stroke adjuster
- Shock absorber option
- End lock option in the event of air pressure loss
- PTFE grease or food grade grease option
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, MXS8-50A, Precision Slide Table, Standard, Series: MXS, 8 mm Cylinder Bore, 50 mm Stroke Length, 71 N Push, 53 N Pull Maximum Force, Double Acting Cylinder Action, M5x0.8 Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C
SPECIFICATIONS
| Port Size | : | M5x0.8 |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Series | : | MXS |
| Temperature Rating | : | -10 to 60 deg C |
| Type | : | Standard |
| Cylinder Bore Size | : | 8 mm |
| Stroke Length | : | 50 mm |
| Maximum Force | : | 71 N Push, 53 N Pull |
| Cylinder Action | : | Double Acting |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_MXS16_75A_M9PSAPC_Catalog.pdf
