MXP10-10

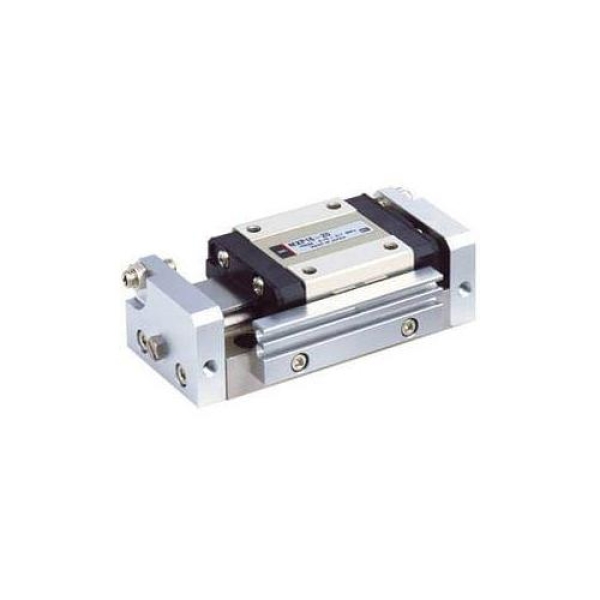

SMC® MXP10-10 MXP Slide Table, 10 mm Cylinder Bore, 10 mm L Stroke, Side/Top Mounting
- CP#:
- Item#: MXP10-10
- Mfr#: MXP10-10
- Non-rotating accuracy +/-0.03 deg for 6, 8, 10 mm bore
- Non-rotating accuracy +/-0.04 deg for 12, 16 mm bore
- Stroke adjuster options, rubber, metal stopper or shock absorber
- PTFE grease or food grade grease option
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, MXP10-10, Slide Table, Series: MXP, 10 mm Cylinder Bore, 10 mm Stroke Length, M3 x 0.5 Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C, Side/Top Mounting, Stainless Steel
SPECIFICATIONS
| Material | : | Stainless Steel |
| Port Size | : | M3 x 0.5 |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Series | : | MXP |
| Temperature Rating | : | -10 to 60 deg C |
| Cylinder Bore Size | : | 10 mm |
| Stroke Length | : | 10 mm |
| Mounting Type | : | Side/Top |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_MXP10_10_Catalog.pdf
