MHZL2-16D

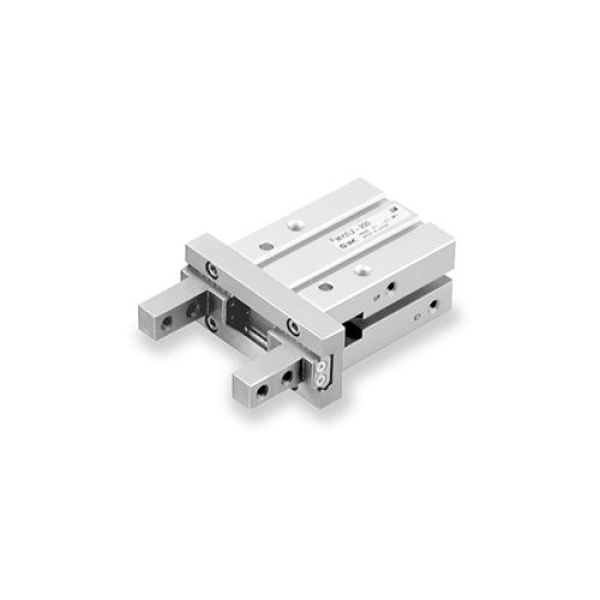

SMC® MHZL2-16D MHZL2 2-Finger Standard Air Gripper, 26.9 mm W Open, 14.9 mm W Closed, 45 N Internal Holding Force, 34 N External Holding Force
- CP#:
- Item#: MHZL2-16D
- Mfr#: MHZL2-16D
- High repeatability ±0.01 mm
- Standard and flat finger option
- Option for NSF-H1, food grade lubricant
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, MHZL2-16D, Air Gripper, 2-Finger Standard, Series: MHZL2, 26.9 mm Open Width, 14.9 mm Closed Width, 45 N Internal Holding Force, 34 N External Holding Force, 15 to 102 psi Pressure, 14 to 140 deg F, M5x0.8 Port, 70 mm Overall Length
SPECIFICATIONS
| Overall Length | : | 70 mm |
| Port Size | : | M5x0.8 |
| Pressure Rating | : | 15 to 102 psi |
| Series | : | MHZL2 |
| Temperature Rating | : | 14 to 140 deg F |
| Type | : | 2-Finger Standard |
| Open Width | : | 26.9 mm |
| Closed Width | : | 14.9 mm |
| Internal Holding Force | : | 45 N |
| External Holding Force | : | 34 N |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_MHZ2_20D_Catalog.pdf
