- SMC® KQ2U04-00A
KQ2U04-00A

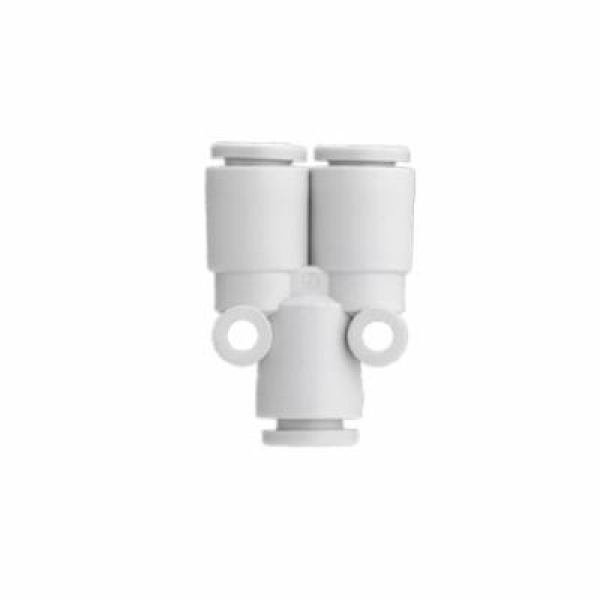

SMC® KQ2U04-00A Y-Union, 4 mm, Tube, PBT
- CP#:
- Item#: KQ2U04-00A
- Mfr#: KQ2U04-00A
- Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
- Operating fluid - air and water
- Release collar allows easy removal of tubing without causing damage to the tube
- Not intended for use in potable water systems
- 8.2 mm outside Dia
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
SMC® Y-Union, Series: KQ2, Fitting/Connector Type: Union, 4 mm Nominal, Tube, 29 in Length, 145 psi, 23 to 140 deg F, PBT, Gray/White. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Color | : | Gray/White |
| Length | : | 29 in |
| Pressure Rating | : | 145 psi |
| Series | : | KQ2 |
| Temperature Rating | : | 23 to 140 deg F |
| Fitting/Connector Type | : | Union |
| Nominal Size | : | 4 mm |
| End Style | : | Tube |
| Material | : | PBT |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_KQ2L06_03AS_Catalog.pdf
