SMC® KQ2T13-36AS
SMC®

SMC® KQ2T13-36AS

loading
SMC®
Email Print

KQ2T13-36AS

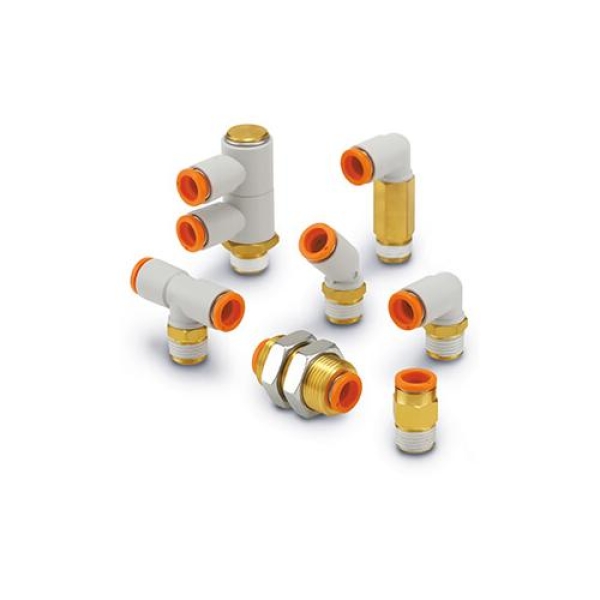

SMC® KQ2T13-36AS KQ2 Pneumatic Tee, 1/2 in x 3/8 in Nominal, MNPT x Push-In Tube End Style, Brass

  • Item#: KQ2T13-36AS
  • Mfr#: KQ2T13-36AS
  • Accepts nylon and polyurethane tubes
  • Stud allows rotation of the body for ease of installation in confined spaces
  • Release collar allows easy removal of tubing without damaging the tube
  • Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
  • This product is not intended for use in potable water systems
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

SMC®, KQ2T13-36AS, Pneumatic Tee, Series: KQ2, Fitting/Connector: Tee, 1/2 in x 3/8 in Nominal, MNPT x Push-In Tube End Style, 17.46 mm Hex, 56 mm Length, -100 KPa to 1 MPa Pressure, -5 to 60 deg C, Brass, White/Orange. For certificates of compliance, please contact your local Purvis representative.

SPECIFICATIONS

Color      :      White/Orange
Hex Size      :      17.46 mm
Length      :      56 mm
Pressure Rating      :      -100 KPa to 1 MPa
Series      :      KQ2
Temperature Rating      :      -5 to 60 deg C
Fitting/Connector Type      :      Tee
Nominal Size      :      1/2 in x 3/8 in
End Style      :      MNPT x Push-In Tube
Material      :      Brass

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_KQ2T11_35AS_Catalog.pdf
