KQ2L10-02AS

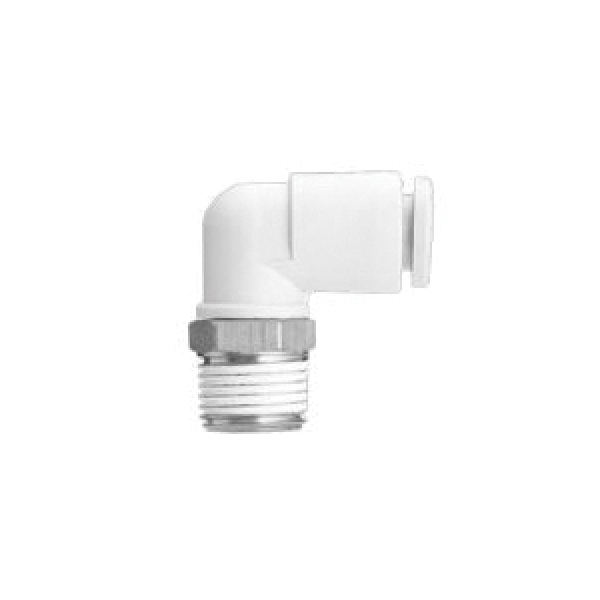

SMC® KQ2L10-02AS Tube Elbow, 10 mm x M1/4 Nominal, Male Threaded x Push-In, Brass

  • Item#: KQ2L10-02AS
  • Mfr#: KQ2L10-02AS
  • Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
  • Air and water fluid
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This is not intended for use in potable water systems
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Tube Elbow, Series: KQ2, Fitting/Connector Type: Elbow, 10 mm x M1/4 Nominal, Male Threaded x Push-In, 17 mm Hex, -100 kPa to 1 MPa, -5 to 60 deg C, Brass

SPECIFICATIONS

Hex Size      :      17 mm
Pressure Rating      :      -100 kPa to 1 MPa
Series      :      KQ2
Temperature Rating      :      -5 to 60 deg C
Fitting/Connector Type      :      Elbow
Nominal Size      :      10 mm x M1/4
End Style      :      Male Threaded x Push-In
Material      :      Brass
