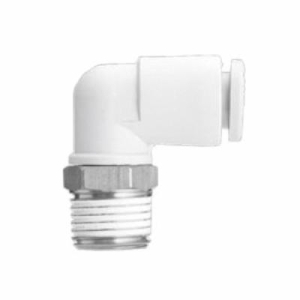

SMC® KQ2L08-01AS 90 deg Union Male Elbow, 1/8 in, Male BSPT, PBT
KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
SMC® Male Elbow, Union, Series: KQ2, Fitting/Connector Type: 90 deg Elbow, 1/8 in Nominal, Male BSPT, 10 mm Hex, 145 psi, 23 to 140 deg F, PBT, Gray/White
Color | : | Gray/White |
Hex Size | : | 10 mm |
Pressure Rating | : | 145 psi |
Series | : | KQ2 |
Temperature Rating | : | 23 to 140 deg F |
Fitting/Connector Type | : | 90 deg Elbow |
Type | : | Union |
Nominal Size | : | 1/8 in |
End Style | : | Male BSPT |
Material | : | PBT |
