SMC® KQ2H13-37AS
SMC®

SMC® KQ2H13-37AS

loading
SMC®
Email Print

KQ2H13-37AS

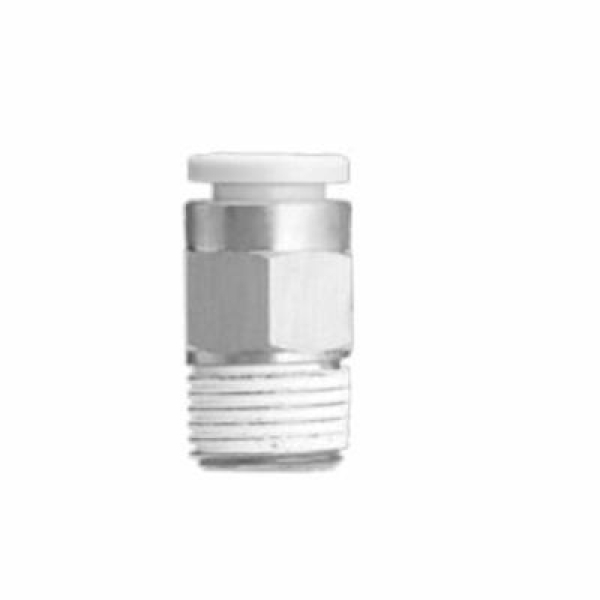

SMC® KQ2H13-37AS KQ2 Half Union Male Adapter, 1/2 in Nominal, MNPT, Brass, Import

  • Item#: KQ2H13-37AS
  • Mfr#: KQ2H13-37AS
  • Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
  • Release collar allows easy removal of tubing without causing damage to the tube
  • Operating fluid - air and water
  • Not intended for use in potable water systems
  • Connection thread with sealant
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

KQ2 one touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1 MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Male Adapter, Half Union, Series: KQ2, Adapter Fitting/Connector, 1/2 in Nominal, MNPT End Style, 22.23 mm Hex, 28 in Length, 145 psi Pressure, 23 to 140 deg F, Brass, 17.9 in Dia, Import. For certificates of compliance, please contact your local Purvis representative.

SPECIFICATIONS

Dimensions      :      17.9 in Dia
Hex Size      :      22.23 mm
Length      :      28 in
Pressure Rating      :      145 psi
Series      :      KQ2
Temperature Rating      :      23 to 140 deg F
Fitting/Connector Type      :      Adapter
Type      :      Half Union
Nominal Size      :      1/2 in
End Style      :      MNPT
Material      :      Brass
Domestic/Import      :      Import

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_KQ2L06_03AS_Catalog.pdf
