CXSM15-40

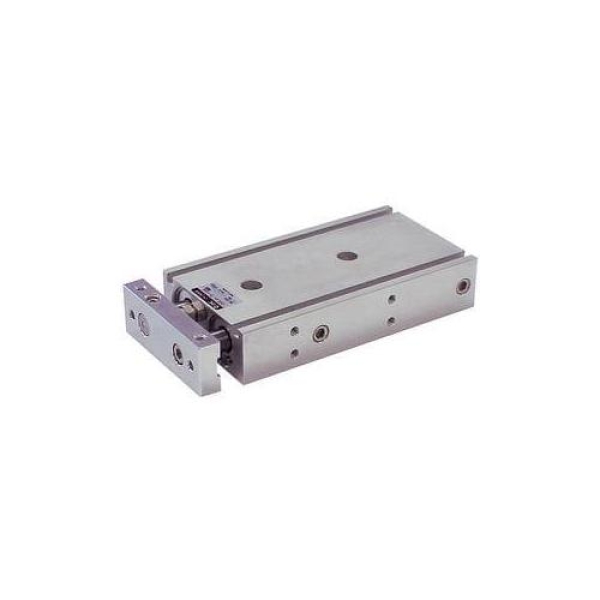

SMC® CXSM15-40 CXS Slide Bearing Cylinder, 15 mm Cylinder Bore, 40 mm L Stroke, 176 N Max Force, Double Acting Cylinder Action, Direct Mounting
- CP#:
- Item#: CXSM15-40
- Mfr#: CXSM15-40
- Non-rotating accuracy ± 0.1 deg
- Stroke adjustment range from 0 to 5 mm
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, CXSM15-40, Cylinder, Slide Bearing, Series: CXS, 15 mm Cylinder Bore, 40 mm Stroke Length, 176 N Maximum Force, Double Acting Cylinder Action, M5 x 0.8 Port, 0.1 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 20 mm in H x 58 mm in W x 119 mm in D Dimensions
SPECIFICATIONS
| Cushion Type | : | Rubber |
| Dimensions | : | 20 mm in H x 58 mm in W x 119 mm in D |
| Port Size | : | M5 x 0.8 |
| Pressure Rating | : | 0.1 to 0.7 mpa |
| Series | : | CXS |
| Temperature Rating | : | -10 to 60 deg C |
| Type | : | Slide Bearing |
| Cylinder Bore Size | : | 15 mm |
| Stroke Length | : | 40 mm |
| Maximum Force | : | 176 N |
| Cylinder Action | : | Double Acting |
| Mounting Type | : | Direct |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_CXSL32_50A_Catalog.pdf
