CQ2B20-10D

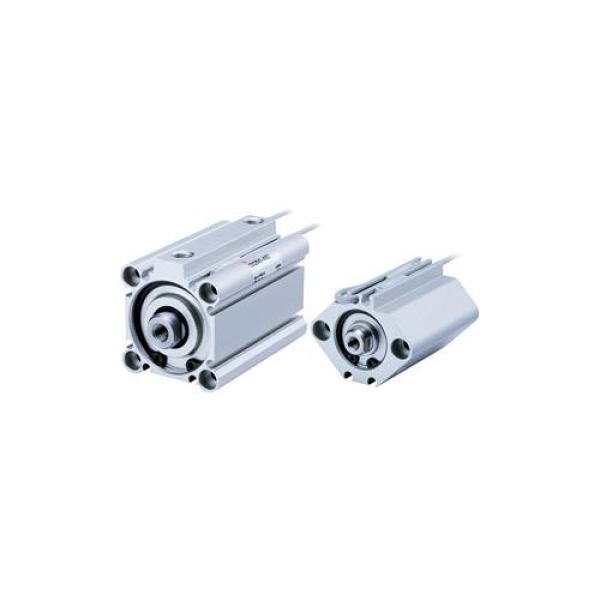

SMC® CQ2B20-10D CQ2 Standard Cylinder, 20 mm Cylinder Bore, 10 mm L Stroke, Double Acting Cylinder Action, Through Hole Mounting
- CP#:
- Item#: CQ2B20-10D
- Mfr#: CQ2B20-10D
- Double acting, single rod, compact cylinder
- Standard stroke range from 5 to 100 mm
- Port threads are M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
- Auto switch capable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, CQ2B20-10D, Cylinder, Standard, Series: CQ2, 20 mm Cylinder Bore, 10 mm Stroke Length, Double Acting Cylinder Action, M5 x 0.8 Port, 1 mpa Pressure, -10 to 70 deg C, Through Hole Mounting, 1.42 in H x 1.42 in W x 1.34 in L Dimensions
SPECIFICATIONS
| Dimensions | : | 1.42 in H x 1.42 in W x 1.34 in L |
| Port Size | : | M5 x 0.8 |
| Pressure Rating | : | 1 mpa |
| Series | : | CQ2 |
| Temperature Rating | : | -10 to 70 deg C |
| Type | : | Standard |
| Cylinder Bore Size | : | 20 mm |
| Stroke Length | : | 10 mm |
| Cylinder Action | : | Double Acting |
| Mounting Type | : | Through Hole |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_CDQ2B20_40DZ_Catalog.pdf
