SMC®
AW20-N02CE-CZ

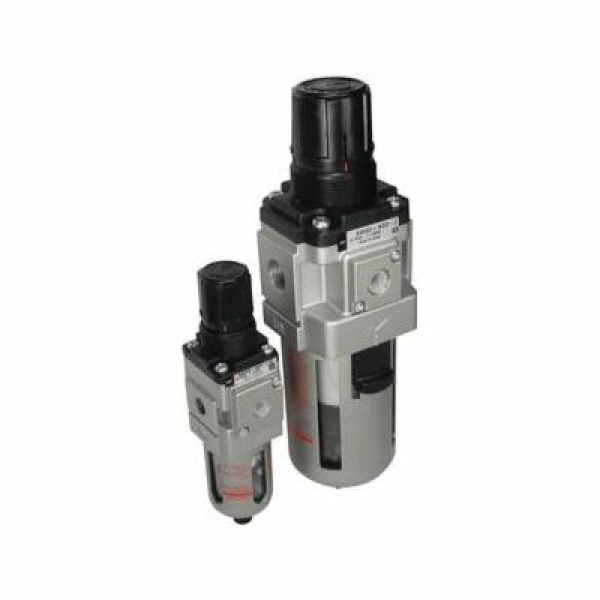

SMC® AW20-N02CE-CZ Modular Replacement Filter/Regulator, 1/4 in Port, 1.5 MPa Pressure, Polycarbonate Bowl
- Item#: AW20-N02CE-CZ
- Mfr#: AW20-N02CE-CZ
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
This combination filter/regulator minimizes space and piping by integrating the 2 units into one. Standard features include a relieving regulator, which can be quickly locked by pushing down on the adjustment knob. There are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc. The AW is part of the family of modular air preparation units and can be combined with other similar sized products. This series is available in four body sizes with piping from M5 to 3/4 in Rc, NPT or G thread types.
SMC® Replacement Filter/Regulator, Modular, Series: AW20, 1/4 in, 1.5 MPa, Polycarbonate Bowl, 0 to 125 psi, Polycarbonate
SPECIFICATIONS
| Adjustment Range | : | 0 to 125 psi |
| Material | : | Polycarbonate |
| Series | : | AW20 |
| Type | : | Modular |
| Port Size | : | 1/4 in |
| Pressure Range | : | 6 mm |
| Bowl Material | : | Polycarbonate |
