AS3201F-N03-06SA

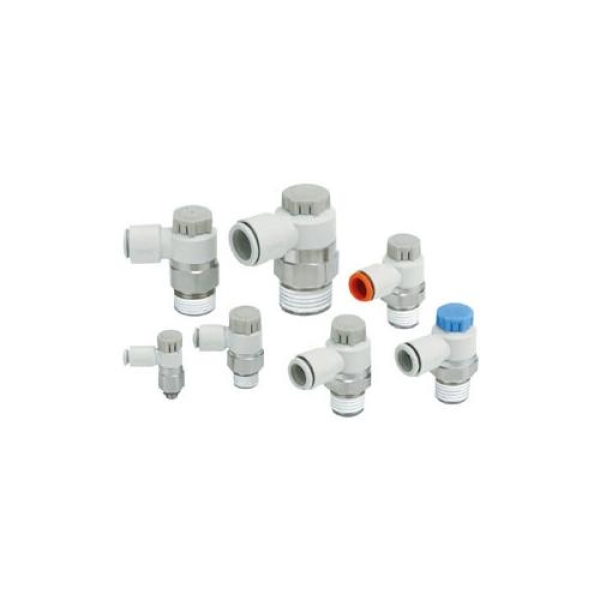

SMC® AS3201F-N03-06SA AS Elbow Speed Controller Value, 3/8 in Port, 0.1 to 1 MPa Pressure, PBT/Brass Body
- CP#:
- Item#: AS3201F-N03-06SA
- Mfr#: AS3201F-N03-06SA
- Elbow type, speed control with one-touch fitting
- Improved, larger push-lock handle
- Easy identification of meter-in (blue handle) vs meter-out (gray handle)
- Max. operating pressure 1MPa
- Applicable tubing Material, nylon, soft nylon, polyurethane
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, AS3201F-N03-06SA, Speed Controller Value, Elbow, Series: AS, 6 mm Nominal, 3/8 in Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, NPT Port, Media: Air, PBT/Brass Body, NBR/Stainless Steel Softgoods, Electroless Nickel Plated, 32.1 mm L x 42.3 mm H Dimensions
SPECIFICATIONS
| Dimensions | : | 32.1 mm L x 42.3 mm H |
| Finish | : | Electroless Nickel Plated |
| Media | : | Air |
| Nominal Size | : | 6 mm |
| Port Type | : | NPT |
| Series | : | AS |
| Softgoods Material | : | NBR/Stainless Steel |
| Temperature Rating | : | -5 to 60 deg C |
| Type | : | Elbow |
| Port Size | : | 3/8 in |
| Pressure Rating | : | 0.1 to 1 MPa |
| Body Material | : | PBT/Brass |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AS4201F_N04_13A_Catalog.pdf
