AS1201FG-M5-06

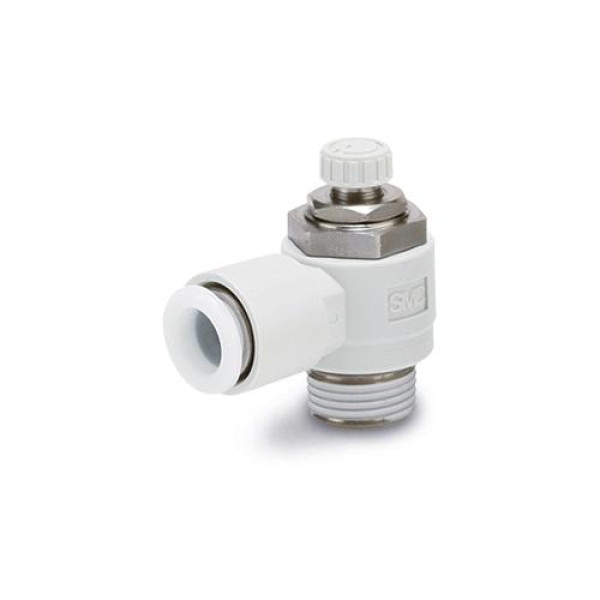

SMC® AS1201FG-M5-06 AS-FG Elbow Speed Controller, M5 x 0.8 Port, 0.1 to 1 MPa Pressure, 100 Lpm Flow Rate, PBT/Stainless Steel Body
- CP#:
- Item#: AS1201FG-M5-06
- Mfr#: AS1201FG-M5-06
- Stainless steel specification for use in corrosive environments
- Available with PT or NPT ports
- One-touch fittings
- Meter-in and meter-out types easily determined by the flow direction symbol on the resin body
- Threads with and without sealant are available as standard
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, AS1201FG-M5-06, Speed Controller, Elbow, Series: AS-FG, 6 mm Nominal, M5 x 0.8 Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, 100 Lpm Flow Rate, Push-In Port, Media: Air, PBT/Stainless Steel Body, 28.6 mm H x 22.9 mm L Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 28.6 mm H x 22.9 mm L |
| Media | : | Air |
| Nominal Size | : | 6 mm |
| Port Type | : | Push-In |
| Series | : | AS-FG |
| Temperature Rating | : | -5 to 60 deg C |
| Type | : | Elbow |
| Port Size | : | M5 x 0.8 |
| Pressure Rating | : | 0.1 to 1 MPa |
| Flow Rate | : | 100 Lpm |
| Body Material | : | PBT/Stainless Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AS4301FG_04_10_Catalog.pdf
