AS1201F-M3-04

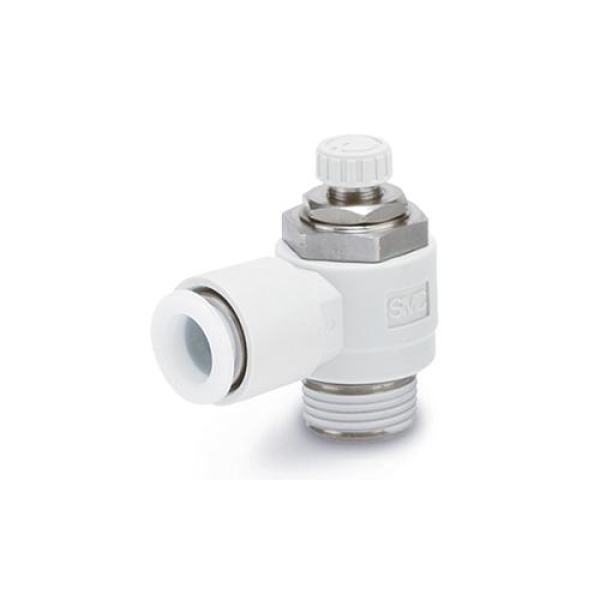

SMC® AS1201F-M3-04 AS Series Elbow Speed Controller, M3 x 0.5 Port, 0.1 to 1 MPa Pressure, 20 Lpm Flow Rate, PBT/Brass Body
- CP#:
- Item#: AS1201F-M3-04
- Mfr#: AS1201F-M3-04
- Speed controller with one-touch fittings
- Body sizes are M3, M5, 1/8, 1/4, 3/8, 1/2
- Maximum operating pressure 1MPa
- Meter in or meter out control
- Port sizes are M3, M5, U10/32, 01, 02, 03, 04
- Various tube O.D. in both metric and inch
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, AS1201F-M3-04, Speed Controller, Elbow, Series: AS Series, 4 mm Nominal, M3 x 0.5 Port, 0.1 to 1 MPa Pressure, -5 to 60 deg C, 20 Lpm Flow Rate, Push-In Port, Media: Air, PBT/Brass Body, 26.6 mm H x 19.7 mm L Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 26.6 mm H x 19.7 mm L |
| Media | : | Air |
| Nominal Size | : | 4 mm |
| Port Type | : | Push-In |
| Series | : | AS Series |
| Temperature Rating | : | -5 to 60 deg C |
| Type | : | Elbow |
| Port Size | : | M3 x 0.5 |
| Pressure Rating | : | 0.1 to 1 MPa |
| Flow Rate | : | 20 Lpm |
| Body Material | : | PBT/Brass |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AS4201F_04_12S_Catalog.pdf
