AS1002F-01

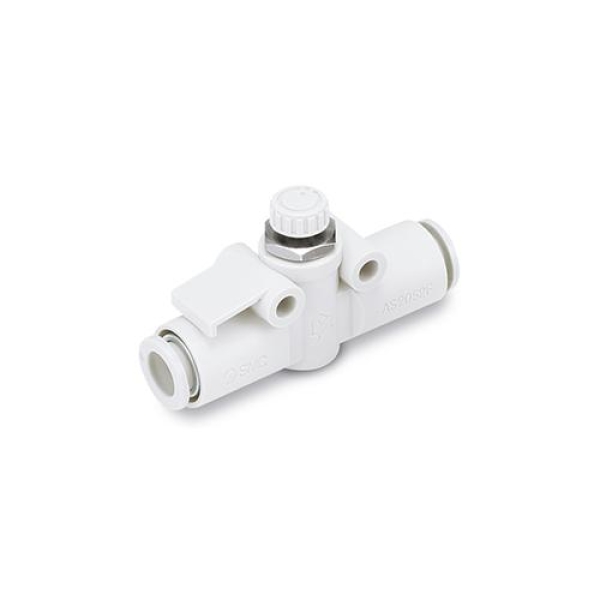

SMC® AS1002F-01 AS Series In-Line Speed Controller, 15 to 145 psi Pressure, 4.6 scfm Flow Rate, PBT/Brass Body
- CP#:
- Item#: AS1002F-01
- Mfr#: AS1002F-01
- In-line, compact, one-touch fittings
- Maximum operating pressure is 1 MPa
- Applicable tube materials are nylon, soft nylon, polyurethane
- Body sizes are M3, M5, 1/8, 1/4, 3/8 and 1/2
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, AS1002F-01, Speed Controller, In-Line, Series: AS Series, 1/8 in Nominal, 15 to 145 psi Pressure, 23 to 140 deg F, 4.6 scfm Flow Rate, Push-In Port, Media: Air, PBT/Brass Body, 23.8 mm H x 9.8 mm W x 36 mm L Dimensions. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Dimensions | : | 23.8 mm H x 9.8 mm W x 36 mm L |
| Media | : | Air |
| Nominal Size | : | 1/8 in |
| Port Type | : | Push-In |
| Series | : | AS Series |
| Temperature Rating | : | 23 to 140 deg F |
| Type | : | In-Line |
| Pressure Rating | : | 15 to 145 psi |
| Flow Rate | : | 4.6 scfm |
| Body Material | : | PBT/Brass |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AS3002F_12_Catalog.pdf
