AR20-N02-Z-A

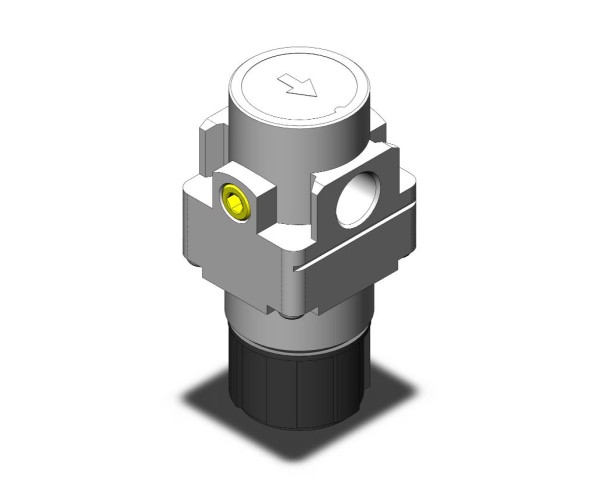

SMC® AR20-N02-Z-A Mass Pro Non-Relieving Modular Regulator, 1/4 in Port, 500 Lpm Flow Rate, 0.05 to 0.85 MPa Pressure

  • Item#: AR20-N02-Z-A
  • Mfr#: AR20-N02-Z-A
  • Without mounting
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Cost effective and clean looking, series AR regulators offer various pressure range settings to accommodate most applications. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting and a pressure gauge. The modular design of the AR series connects with other SMC® air preparation equipment.

SMC® Modular Regulator, Non-Relieving, Series: AR20 Mass Pro, 1/4 in Port, 500 Lpm Flow Rate, 0.05 to 0.85 MPa Pressure, -5 to 60 deg C, Die Cast Aluminum

SPECIFICATIONS

Material      :      Die Cast Aluminum
Series      :      AR20 Mass Pro
Temperature Rating      :      -5 to 60 deg C
Type      :      Non-Relieving
Port Size      :      1/4 in
Flow Rate      :      500 Lpm
Pressure Range      :      0.05 to 0.85 MPa

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AF20N02CZ_Catalog.pdf
