AN15-02

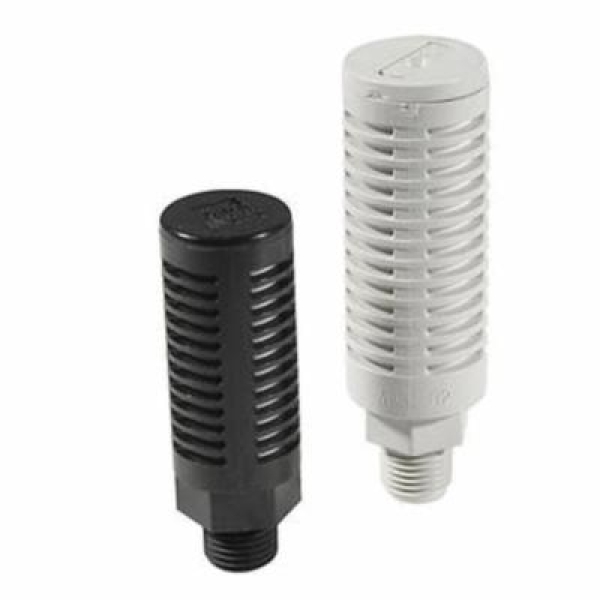

SMC® AN15-02 Pneumatic Silencer, 1/4 in Port, 1.0 mpa Pressure Rating, 41 to 140 deg F, 16 mm Dia x 32 mm L OAL
- CP#:
- Item#: AN15-02
- Mfr#: AN15-02
- UPC: 713049010632
- Series AN silencers offer various styles and low backpressure in a compact, easy mounting design
- The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material
- Compressed air fluid
- 1 MPa maximum operating pressure
- 15 sq-mm effective area
- 1 cu-m/min or less recommended flow
- 1/4 R (PT) thread type
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Series an silencers offer various styles and low backpressure in a compact, easy mounting design. The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material. Series an is available with M, R or NPT threads.
SMC® Pneumatic Silencer, Series: AN, 1/4 in, 1.0 mpa, 41 to 140 deg F, 16 mm Dia x 32 mm L Overall Length, Resin. For certificates of compliance, please contact your local Purvis representative.
SPECIFICATIONS
| Material | : | Resin |
| Series | : | AN |
| Port Size | : | 1/4 in |
| Pressure Rating | : | 1.0 mpa |
| Temperature Rating | : | 41 to 140 deg F |
| Overall Length | : | 16 mm Dia x 32 mm L |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_AN10_C07_Catalog.pdf
