AC50-N06CG-6Z-B

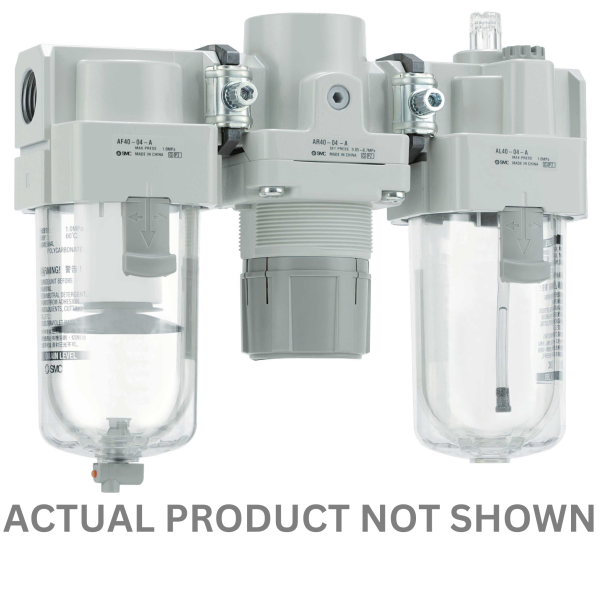

SMC® AC50-N06CG-6Z-B f/r/l combo modular, AC MASS PRO
- CP#:
- Item#: AC50-N06CG-6Z-B
- Mfr#: AC50-N06CG-6Z-B
- Air filter, regulator and lubricator unit
- Clean looking, modular design
- Energy saving with high flow rate
- Compact spacer with bracket reduces total assembly space
- Optional embedded pressure gauge
- Improved installation
- Rc(PT), G(PF) or NPT threads
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The cost effective and clean looking AC series allows you to pick a combination of modular style air preparation equipment that best suits your needs. The series, available in 8 size options to ensure optimum performance, offers energy savings, with higher flow rates. Simple assembly and maintenance reduces downtime.
SPECIFICATIONS
| Bowl Guard | : | No |
| Filter Rating | : | 5 micron |
| Lubricator w/Drain Cock | : | No |
| Set Pressure Range | : | 0.05 to 0.85 MPa |
| Float Type Auto Drain | : | Normally Closed |
| Port Size | : | 3/4 in |
| Bowl Material | : | Nylon Bowl |
| Recommended Lubricant | : | Class 1 Turbine Oil |
| Max Operating Pressure | : | 1 MPa |
| Proof Pressure | : | 1.5 MPa |
| Ambient & Fluid Temp | : | -5…60 deg C |
| Fluid | : | Air |
| Pressure Gauge Units | : | Imperial: psi, deg F |
| Pressure Unit Bowl Caution Plate | : | Yes |
| Pressure Unit Name Plate | : | Yes |
| Flow Direction | : | Left to Right |
| Exhaust Mechanism | : | Relieving Type |
| Air Filter Drain Port | : | No |
| Pressure Gauge | : | Square Embedded w/ Limit Indicator |
| Pipe Thread Type | : | NPT |
| Body Size | : | 50 |
| Weight | : | 9.7 lb |
| Class Description | : | AC MASS PRO 3/4 MODULAR (NPT) |
| Family Code | : | GC |
| Family | : | AC MASS PRO |
| Products Line | : | AIRLINE EQUIPMENT |
| Part Description | : | F/R/L COMBO MODULAR |
