SY 1.1/4 TF/VA228

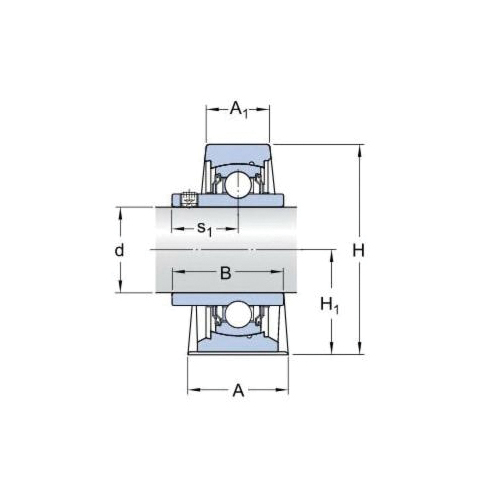

SKF® SY 1.1/4 TF/VA228 Pillow Block Ball Bearing Unit, 1-1/4 in Dia Bore, 4.9606 in L Bolt Center-to-Center, 0.748 in Base to Bore Centerline, 6.2992 in OAL x 3.6614 in OAH
- CP#:
- Item#: SY 1.1/4 TF/VA228
- Mfr#: SY 1.1/4 TF/VA228
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SKF® Pillow Block Ball Bearing Unit, 1-1/4 in Bore, 4.9606 in Bolt Center-to-Center Length, 0.748 in Base to Bore Centerline, 6.2992 in Overall Length, 1-11/16 in Overall Width, 3.6614 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.7717 in Base Width, Set Screw Locking Device, Non-Contact Seal, Non-Expansion (Fixed) Expansion, 5733 lbf Dynamic/3440 lbf Static Load, 661.5 deg F, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 1.7717 in |
| Base to Bore Centerline | : | 0.748 in |
| Bolt Center-to-Center Length | : | 4.9606 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Uncoated |
| Overall Length | : | 6.2992 in |
| Load Capacity | : | 5733 lbf Dynamic/3440 lbf Static |
| Material | : | Cast Iron |
| Overall Width | : | 1-11/16 in |
| Overall Height | : | 3.6614 in |
| Seal Type | : | Non-Contact |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/505/SKF_SY_1_1_4_TF_VA228_Specification_Sheet.pdf
